Excavation Edge Guardrail

Edge protection for excavations, basement pits and slab edges: a mesh-panel or vertical-tube guardrail on a common 50 × 50 mm square-tube post, plus the heavier double-panel variant on an 8 cm post with a bolted base flange.

Product category: Guardrails & railings — edge-protection guardrail for excavations, basement pits and slab edges
Brand: HONGYING GUARDRAIL
Manufacturer: Hubei Hongying Guardrail Co., Ltd. — Jiangxia District, Wuhan, Hubei, China
Project service: Made to the project specification: drawing, standard, quantity and destination port

How to select

Decide first whether the run is the movable or the fixed version, then which panel type is wanted — mesh-panel or vertical-tube. The post section and the base fixing follow from the ground condition, and the panel length, panel height and post spacing are confirmed against the site drawing. The warning colours are the last choice: yellow-and-black alternating, red-and-white alternating, or made to order.

Get a quote Back to products

This is the guardrail we supply for the open edge of an excavation, a basement pit or a slab. Both light types share one 50 × 50 mm square-tube post, so the panel type can change along a single post line, and the heavier double-panel variant is there for the pit edge that has to take more. That combination is what gets specified where the edge stays open for the length of the works and the barrier has to be seen, not just present.

Photographs below show the product family; the specification on this page is the manufacturer's published figure and is quoted unchanged.

01 · Product overview

What the excavation edge guardrail is made of

The published figures are a 50 × 50 mm square-tube post shared by both light variants, mesh-panel and vertical-tube panels in a 20 × 30 mm or 30 × 30 mm square-tube outer frame with 50 × 50 mm mesh at 3.5 mm wire, and a heavier 1.1 m × 1.7 m double panel on an 8 cm square-tube post 1.3 m high.

Both light variants of this guardrail stand on the same 50 × 50 mm square-tube post, so one post line can run the length of an excavation and the panel type can change along it. The mesh-panel type closes the opening with 50 × 50 mm mesh inside a 20 × 30 mm or 30 × 30 mm square-tube outer frame, which keeps the panel light enough for one person to lift into place while still stopping materials and debris. The vertical-tube type uses a 30 × 30 mm outer frame with vertical tubes, and gives a tidier face where the barrier stands in public view.

The heavier variant is specified for a pit edge that has to take more: a panel welded from 2 cm × 4 cm square tube at 1.1 m × 1.7 m, on an 8 cm square-tube post 1.3 m high with a closed top and an 8 mm × 15 cm × 15 cm base flange drilled with four bolt holes. The flange is fixed down with Φ14 expansion bolts. Each panel carries lugs at both ends, bolted to the post with Φ10 bolts, with the lug set 15 cm from the top and bottom edge of the panel; after installation the panel top is flush with the post and the panel bottom sits 20 cm above ground, at 2 m post spacing. Panel mesh is 50 × 50 mm and the wire diameter is 3.5 mm, with spray painting as the surface treatment and yellow-and-black or red-and-white warning colours among the options. The published load capacity for this variant is about 600 kg. Where a public edge at ground level has to look settled rather than temporary, planter railing is often drawn alongside it.

Both a movable and a fixed version of that variant are made, sharing the same panel and post dimensions; the movable type adds a 20 cm triangular brace in 8 cm square tube at each of its two fixing points. The manufacturer also prints two installation quantities as examples — 100 m for the movable double-panel version and 1361 m for the fixed version — which are examples of the format rather than a figure for your site.

One site rule is worth repeating and is quoted on both variants: the edge of an excavation deeper than 2 m must carry protective railings, and a stairway should be at least 1 m wide. Guardrail positions, toe boards and access openings for a working excavation follow the project's own safety plan, so send us the drawing and we supply to it rather than to a default layout. Where the completed works leave a planted edge, the same drawing usually closes it with PVC railing.

Mesh-panel typeOuter frame 20 × 30 / 30 × 30 mm, mesh 50 × 50 mm
Vertical-tube typeOuter frame 30 × 30 mm with vertical tube infill
Common post50 × 50 mm square tube
Double-panel variant1.1 m × 1.7 m panel on an 8 cm post 1.3 m high
Base flange8 mm × 15 cm × 15 cm plate, 4 holes, Φ14 expansion bolts
Panel mesh / wire50 × 50 mm mesh, 3.5 mm wire
Warning finishYellow-black, applied to panels and posts
Cited site rulePits deeper than 2 m need protective railings

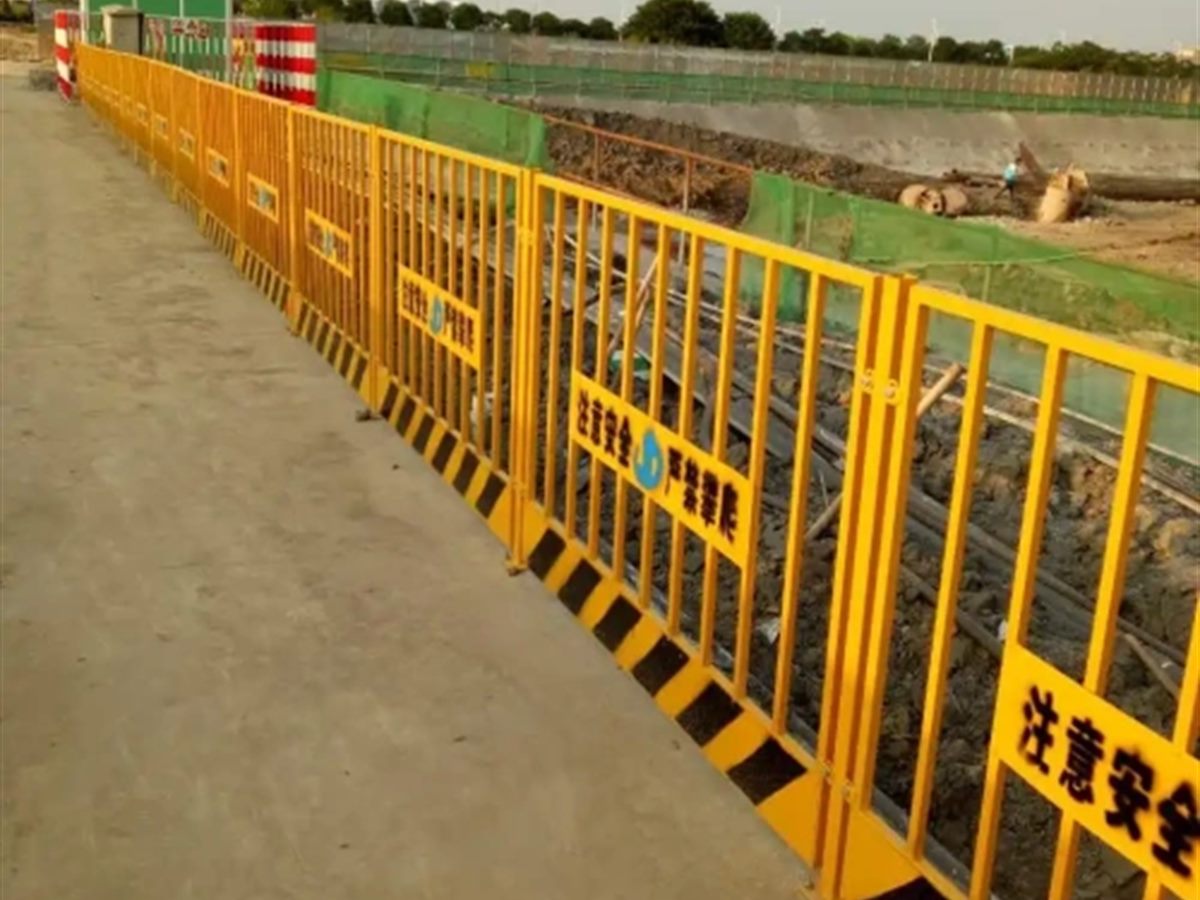

Pictured: the mesh-panel and vertical-tube faces, the 50 × 50 mm square-tube post with its base plate fixing, and the yellow-black warning finish carried along the run.

02 · Technical specification

Excavation Edge Guardrail — specification

The figures below are the specification published for this product and are quoted unchanged: they are the numbers a quotation and a shop drawing are built on. Where a row says made to the project specification, send the drawing or the standard you follow and it is confirmed in writing.

Excavation Edge Guardrail — specification, packing, price and delivery
Packing, price and delivery
Product / family	Excavation edge guardrail, supplied in two variants: variant A, the general mesh-panel / vertical-tube range; variant B, the double-panel / single-panel vertical-tube guardrail. Figures are listed per variant.
Variant A — mesh-panel and vertical-tube guardrail (general range)	Mesh-panel type: outer frame 20 × 30 mm or 30 × 30 mm square tube with 50 × 50 mm mesh openings. Vertical-tube type: outer frame 30 × 30 mm square tube with vertical tube infill. Common post for both types: 50 × 50 mm square tube.

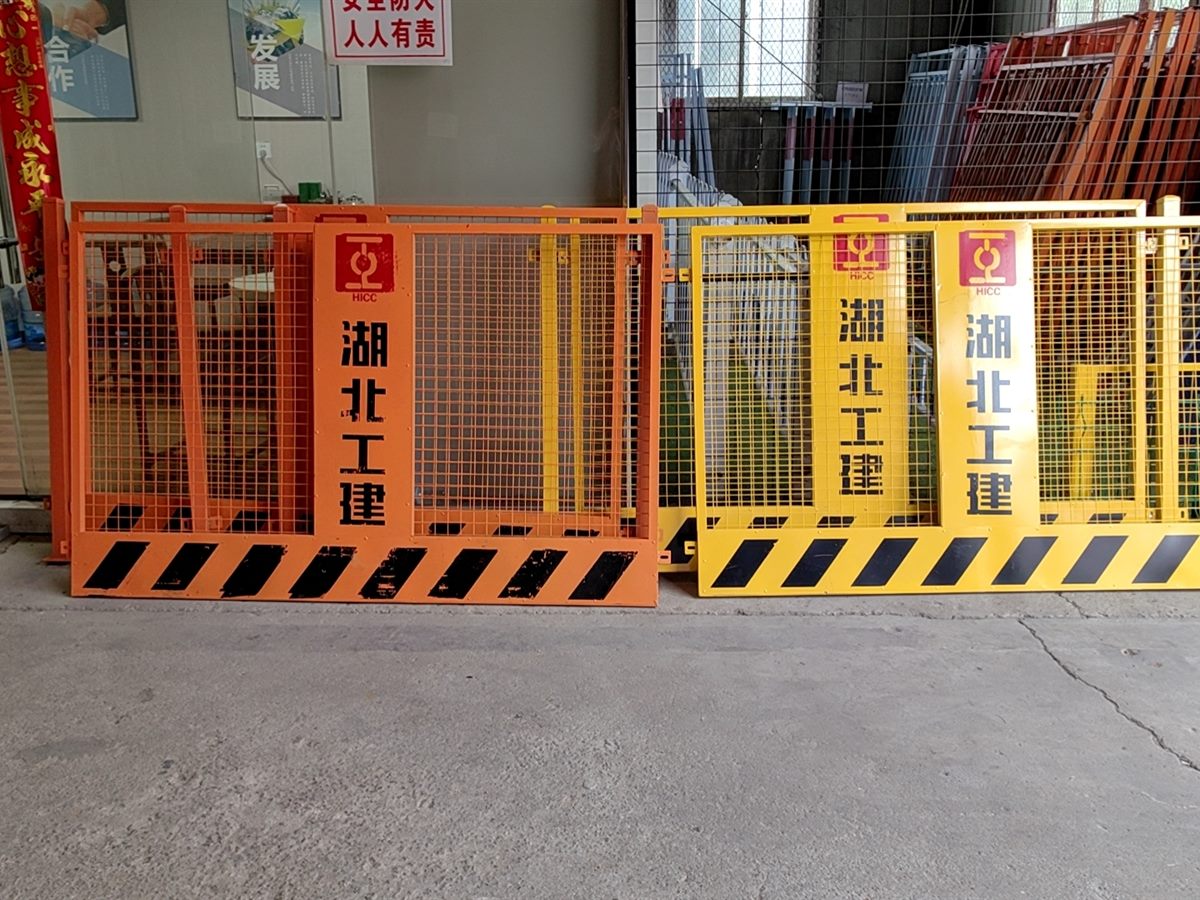

Variant B — double-panel / single-panel vertical-tube guardrail	Movable or fixed guardrail: panel welded from 2 cm × 4 cm square tube, single panel 1.1 m × 1.7 m, on an 8 cm square-tube post 1.3 m high with an 8 mm × 15 cm × 15 cm base flange, panel mesh 50 × 50 mm, wire diameter 3.5 mm, single leaf 1800 × 700 mm.
Variant B — panel construction and size	Panel welded from 2 cm × 4 cm square tube; single panel size 1.1 m × 1.7 m; a movable and a fixed version are supplied, and the two share the same panel and post dimensions.
Variant B — lug and bolt detail	Each panel has lugs at both ends, bolted to the post with Φ10 bolts; the lug sits 15 cm from the top and bottom edge of the panel.
Variant B — post section and height	Post 8 cm square tube, height 1.3 m; the post top is closed.
Variant B — base flange	Base flange of 8 mm × 15 cm × 15 cm steel plate; each flange has 4 bolt holes.
Variant B — ground fixing bolt	The flange is fixed to the ground with Φ14 expansion bolts.
Variant B — installation height and post spacing	After installation the panel top is flush with the post; the panel bottom is 20 cm above ground level; post spacing 2 m.
Variant B — panel mesh	50 × 50 mm.
Variant B — wire diameter	3.5 mm.
Variant B — surface treatment	Spray painting.
Variant B — colour options	Panel painted yellow and post painted red, both by spray painting, to give a red-and-white / yellow-and-black warning effect. Colours available: yellow-and-black alternating, red-and-white alternating, or made to order.
Variant B — single-leaf size	1800 × 700 mm — the standard single-leaf size quoted by the manufacturer.
Variant B — expanded mesh and steel plate	Expanded steel mesh 30 × 40 × 2.0 mm; steel plate 1.0 m.
Variant B — load capacity	About 600 kg.
Variant B — movable vs fixed version	Both versions are made and share the same dimensions; the movable type adds a 20 cm triangular brace at its two fixing points, in 8 cm square tube.
Variant B — quantity examples	Quantities printed by the manufacturer as installation examples: movable double-panel version 100 m; fixed version 1361 m — the same figures appear for the single-panel and site-enclosure variants.
Cited site rule (both variants)	Excavation edges of pits deeper than 2 m must be fitted with protective railings; stairway width should not be less than 1 m.
Packing	Panels and posts are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan.
Price	Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP
MOQ	Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day.
Loading	Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day.
Lead time	Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day.
Documentation	Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply.
