Wire mesh fencing
Anti-Glare Mesh
An expanded metal glare screen in low-carbon or stainless steel plate, welded from expanded metal, special-section tube, side lugs and round tube, and connected to hot-dip galvanised posts.
- Product category
- Wire mesh fencing — expanded metal glare screen and post system
- Brand
- HONGYING GUARDRAIL
- Manufacturer
- Hubei Hongying Guardrail Co., Ltd. — Jiangxia District, Wuhan, Hubei, China
- Project service
- Made to the project specification: drawing, standard, quantity and destination port
How to select
Fix the plate material first — low-carbon steel plate or stainless steel plate — then the screen height, the panel size and the post spacing against the run you have to close. The fixing detail on the median or parapet and the surface treatment settle the rest, and whether the exposure calls for the galvanised-plus-coated double layer is confirmed on the same drawing.
An anti-glare screen earns its place on a median or a bridge deck. The panel is an expanded metal structure in low-carbon or stainless steel plate, welded from expanded metal, special-section tube, side lugs and round tube and connected to hot-dip galvanised posts, so the openings stand at an angle to the carriageway and break up oncoming headlight glare. Because the screen shares its line with a barrier or a parapet, the fixing detail is drawn with the panel rather than after it.
Photographs below show the product family; the specification on this page is the manufacturer's published figure and is quoted unchanged.
01 · Product overview
What the anti-glare mesh is made of
The published figures are low-carbon steel plate or stainless steel plate, an expanded metal structure welded from expanded metal, special-section tube, side lugs and round tube, hot-dip galvanised posts, and a surface that is PVC dipped, hot-dip galvanised or electro-galvanised.
An anti-glare screen is judged by what it does to a beam of light. The panel here is an expanded metal structure — low-carbon steel plate or stainless steel plate slit and opened — so the openings sit at an angle to the carriageway and break up oncoming headlight glare instead of passing it down the road. The screen is welded from expanded metal, special-section tube, side lugs and round tube, and is then connected to hot-dip galvanised posts. Where a woven face suits the boundary better than an expanded metal one, chain-link fence is the other wire mesh fencing product quoted for the same projects.
Surface treatment is PVC dipping — the manufacturer's own wording covers coating, spraying or dipping — hot-dip galvanising or electro-galvanising. Where the exposure is severe, the screen is supplied with a galvanised-plus-coated double layer, so a galvanised base sits under the coating. The manufacturer describes its dipping process as 高效浸塑，十年防锈, high-efficiency dipping with ten years anti-rust; that is the manufacturer's claim for its own process and not a certificate issued to us, and warranty wording is agreed per order.
The screen height, panel size and post spacing are all made to the project specification. On a median the fixing detail matters as much as the panel, because the screen usually shares the line with a road guardrail or a parapet, so the side lugs and special-section tube are welded into the panel as the drawing shows.
The applications are the ones the product was developed for: highway medians where opposing carriageways sit close together, and bridge decks where the parapet carries the screen. Send the run length, the slope, the fixing detail on the median or parapet and the destination port and the layout is confirmed on the shop drawing.
- MaterialLow-carbon steel plate or stainless steel plate
- StructureExpanded metal, special-section tube, side lugs, round tube
- FixingConnected to hot-dip galvanised posts
- SurfacePVC dipping, hot-dip galvanising or electro-galvanising
- Double layerGalvanised plus coating where exposure calls for it
- Screen height and panel sizeMade to the project specification
- Post spacingMade to the project specification
- ApplicationsHighway medians and bridges, to cut headlight glare

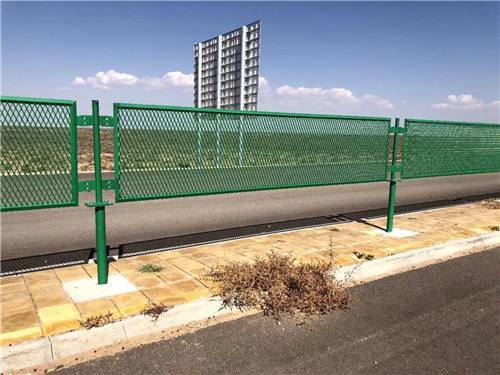

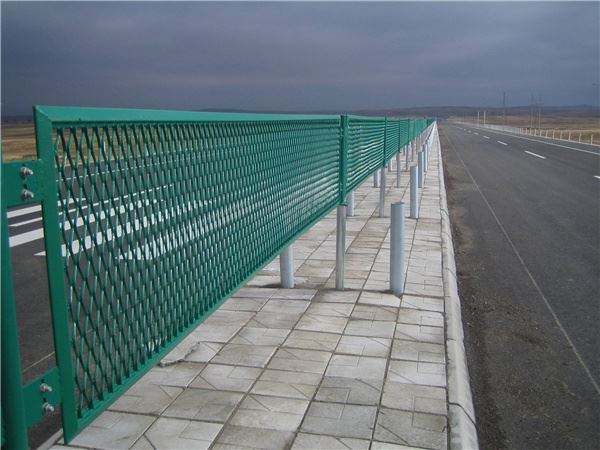

Pictured: the screen standing along a highway median, the panels connected to hot-dip galvanised posts along a median run, and the coated mesh surface on its galvanised base seen close up.
02 · Technical specification
Anti-Glare Mesh — specification
The figures below are the specification published for this product and are quoted unchanged: they are the numbers a quotation and a shop drawing are built on. Where a row says made to the project specification, send the drawing or the standard you follow and it is confirmed in writing.
| Product / model reference | Anti-glare mesh — expanded metal glare screen and post system. Quotation against your drawing or the standard you follow; no catalogue model number is issued until the drawing is agreed. |
|---|---|
| Material | Low-carbon steel plate or stainless steel plate. |
| Type | Expanded metal structure, welded from expanded metal, special-section tube, side lugs and round tube. |
| Fixing | Connected to hot-dip galvanised posts. |
| Surface treatment | PVC dipping (coating, spraying or dipping), hot-dip galvanising or electro-galvanising; galvanised-plus-coated double layer where the exposure calls for it. |
| Screen height and panel size | Made to the project specification — send us the drawing or the standard you follow. |
| Post spacing | Made to the project specification — send us the drawing or the standard you follow. |
| Manufacturer's stated claim | 高效浸塑，十年防锈 — high-efficiency dipping, ten years anti-rust. The manufacturer's own claim for its dipping process, not a certificate; terms are agreed per order and stated on the proforma invoice. |
| Typical applications | Highway medians and bridges, to cut headlight glare. |
| Packing, price and delivery | |
| Packing | Screens, posts and side lugs are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
On a narrow screen the table scrolls sideways; every row stays readable in full.
03 · Features
Why the anti-glare screen is specified
- Material: low-carbon steel plate or stainless steel plate.
- Structure: welded from expanded metal, special-section tube, side lugs and round tube.
- Fixing: connected to hot-dip galvanised posts.
- Surface: PVC dipping (coating, spraying or dipping), hot-dip galvanising or electro-galvanising.
- Double layer option: galvanised plus coating where the exposure calls for it.
- Manufacturer's stated claim: high-efficiency dipping, ten years anti-rust — the manufacturer's own claim for its process, not a certificate.
- Screen height, panel size and post spacing: made to the project specification.
- Applications: highway medians and bridges, to cut headlight glare between carriageways and along a bridge deck.
04 · Made to your drawing
Made to the project specification
Send us the drawing or the standard you follow and we confirm in writing what we can supply against it. For an anti-glare screen, that means the plate material, the screen height, the panel size, the post spacing, the fixing detail on the median or parapet, the surface treatment and whether the double layer is needed.
What settles this specification
The plate material, the screen height and panel size, the post spacing, the fixing detail on the median or parapet, and whether the exposure calls for the galvanised-plus-coated double layer.
05 · Packing, price and delivery
How anti-glare mesh is packed, priced and delivered
Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP. MOQ, loading plan and lead time are confirmed per specification — send the drawing, quantity and destination port and we reply within one business day.
| Packing | Screens, posts and side lugs are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
|---|---|
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating or the print on the shop drawing. |
Screens, posts and side lugs are bundled and palletised by type, so one bundle is one kind of part when the container is unpacked on site.
06 · Questions buyers ask
Anti-Glare Mesh — frequent questions
Every answer below repeats a figure or a term already published on this page; nothing is added to the specification here.
How is the anti-glare screen fixed down?
The screen is connected to hot-dip galvanised posts, and the side lugs and special-section tube are welded into the panel as the drawing shows. On a median the fixing detail matters as much as the panel, because the screen usually shares the line with a barrier or a parapet.
What is made to my drawing?
The screen height, the panel size and the post spacing are all made to the project specification — send us the drawing or the standard you follow. The plate material, the fixing detail on the median or parapet and the surface treatment are confirmed in writing the same way.
Is there a catalogue model number or a published price?
No catalogue model number is issued until the drawing is agreed. Price is quoted per order — FOB Wuhan / Shanghai, CIF or DDP — and MOQ, loading plan and lead time are confirmed per specification; send the drawing, quantity and destination port and we reply within one business day.
Which surface treatments are available, and what about the ten-year anti-rust wording?
The published treatments are PVC dipping (coating, spraying or dipping), hot-dip galvanising or electro-galvanising, with a galvanised-plus-coated double layer where the exposure calls for it. The wording 高效浸塑，十年防锈 — high-efficiency dipping, ten years anti-rust — is the manufacturer's own claim for its dipping process, not a certificate issued to us; colour is RAL to sample and terms are agreed per order.
How is the screen packed, and what documents come with the order?
Screens, posts and side lugs are bundled and palletised for container loading, and the exact packing method is confirmed per specification with the loading plan. The documents are the proforma invoice, commercial invoice, packing list and certificate of origin as required; buyers who need CE / EN / ASTM documentation tell us the standard and it is confirmed in writing what can be supplied.
