Hoarding & site fencing
Colour-Steel Hoarding
A powder-coated square-tube post carrying a U-section slot, with a 0.3 mm grass-green corrugated colour-steel panel dropped into it and a 0.4 mm black-and-yellow PVC warning board along the base — light and fast to erect.
- Product category
- Hoarding & site fencing — powder-coated post-and-panel works hoarding with a corrugated colour-steel panel in a slot
- Brand
- HONGYING GUARDRAIL
- Manufacturer
- Hubei Hongying Guardrail Co., Ltd. — Jiangxia District, Wuhan, Hubei, China
- Project service
- Made to the project specification: drawing, standard, quantity and destination port
How to select
Fix the run height, the site length and the ground fixing first, then the wind exposure, because that is what decides between the 40 square tube and the L40 brace. The last decisions are the post colour from the powder coating and the panel face: grass green as published, another colour, or a printed panel.
This is the hoarding that goes up around a slot rather than a frame. The post carries a U-section, the corrugated colour-steel panel drops into it and the black-and-yellow warning board runs along the bottom of the face. A crew sets the posts, slides the panels home and braces the run, and the hoarding comes down again in whole panels when the job moves to the next site — which is why it is quoted for building sites, road and utility works and temporary compounds.
Photographs below show the product family; the specification on this page is the manufacturer's published figure and is quoted unchanged.
01 · Product overview
What the colour-steel hoarding is made of
The published sections are an 80×80×0.8 mm powder-coated square-tube post, a U-section slot at 0.6/0.25 mm, a 0.3 mm grass-green corrugated colour-steel panel dropped into that slot and a 0.4 mm black-and-yellow PVC warning board along the base of the face.
This hoarding is built around a slot rather than a frame. The post carries a U-section, the corrugated colour-steel panel drops into it, and the black-and-yellow warning board runs along the bottom of the face. That is why it goes up quickly: a crew sets the posts, slides the panels home and braces the run, and it comes down again in whole panels when the job moves.
The published sections are an 80×80×0.8 mm powder-coated square-tube post, a U-section slot at 0.6/0.25 mm, a 0.3 mm grass-green corrugated colour-steel panel and a 0.4 mm black-and-yellow PVC warning board. The powder coating gives the post its colour and its weather-facing finish, and it is the part of the hoarding the public sees at every post.
Behind the face, a 40 square tube or an L40 brace props the run, and both are published options rather than one default. The choice follows the exposure and the ground: a sheltered compound and an exposed roadside are not braced the same way. Because the panels and posts are standard sections, a run can be extended on the next phase or moved to the next site by keeping the posts and re-ordering only what was damaged.
Run height and post spacing are confirmed on the order drawing rather than published, and the face colour is the most visible decision on the product: grass green is what the manufacturer publishes, with another colour or a printed face settled per order. Send the site length, the height, the ground fixing and the colour, and the post spacing, panel band, brace type and packing are confirmed together. A run like this is often quoted beside municipal hoarding, a post-and-panel works hoarding on deep galvanised posts with a two-band panel face, or beside PVC hoarding, where a PVC post shell over a galvanised tube core carries a PVC panel face in the colour you specify.
- Post80×80×0.8 mm powder-coated square tube
- SlotU-section, 0.6/0.25 mm
- Panel0.3 mm colour-steel panel, grass green, corrugated
- Warning board0.4 mm black-and-yellow PVC
- Brace40 square tube, or L40 — both published options
- FinishPowder coating on the post; colour-steel panel face
- Run height and post spacingConfirmed on the order drawing
- UseBuilding sites, road and utility works, temporary compounds

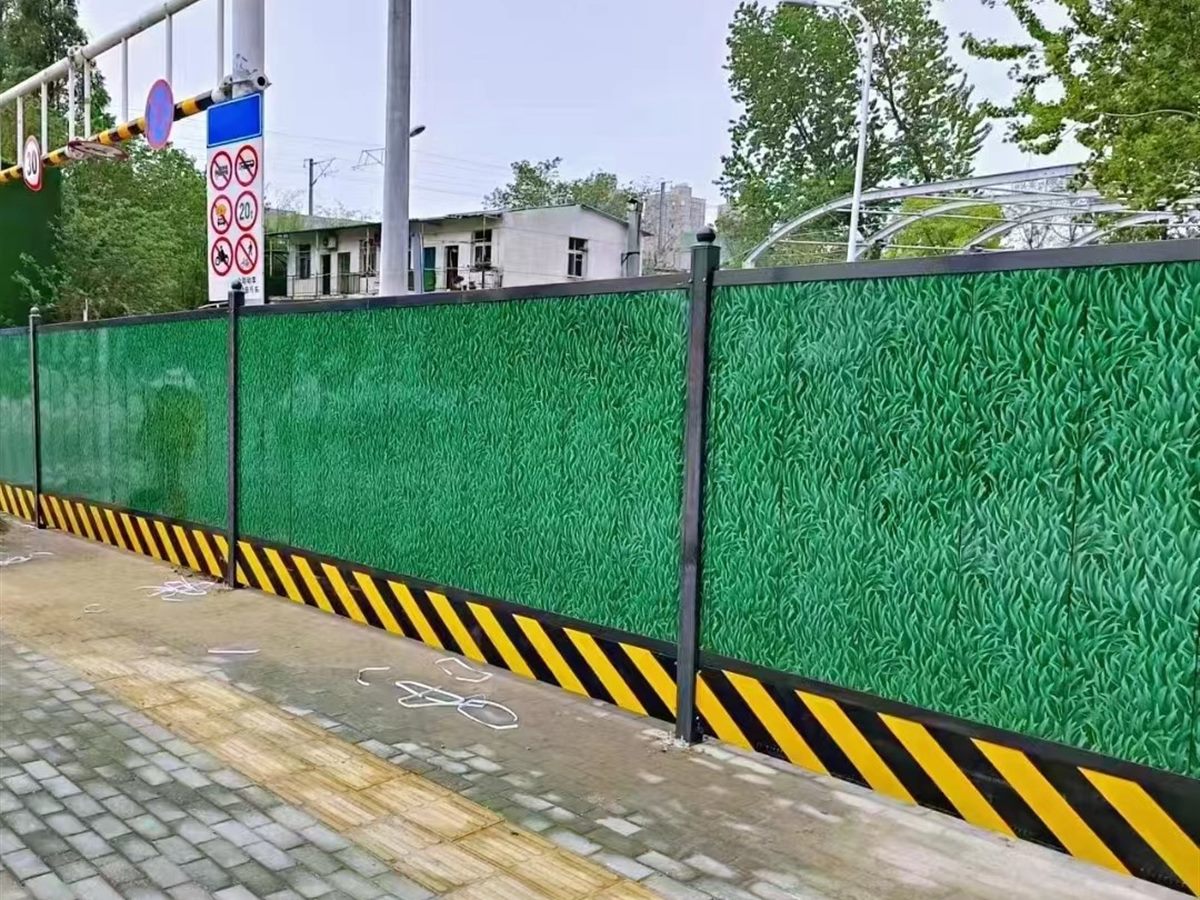

Pictured: the grass-green corrugated panel face, the powder-coated post with its U-section slot holding the panel, and the black-and-yellow warning board running along the base of the run.
02 · Technical specification
Colour-Steel Hoarding — specification
The figures below are the specification published for this product and are quoted unchanged: they are the numbers a quotation and a shop drawing are built on. Where a row says made to the project specification, send the drawing or the standard you follow and it is confirmed in writing.
| Product / model reference | Colour-steel hoarding — powder-coated post-and-panel works hoarding with a corrugated colour-steel panel in a slot. Quoted against your requirement; no catalogue model number is issued until the requirement is agreed. |
|---|---|
| Post (立柱) | 80×80×0.8 mm powder-coated square tube. |
| Slot (卡槽) | U-section, 0.6/0.25 mm. |
| Panel (面板) | 0.3 mm colour-steel panel, grass green, corrugated. |
| Warning board (警示板) | 0.4 mm black-and-yellow PVC. |
| Brace (斜撑) | 40 square tube, or L40 — both are published options. |
| Run height and post spacing | Not published by the manufacturer as fixed figures. Tell us the height you need and the ground condition, and post spacing and brace positions are confirmed on the order drawing. |
| Colours and finish | Panel face in grass green as published; post finish is powder coating. Other colours or a printed face are agreed per order. |
| Packing, price and delivery | |
| Packing | Panels, posts, slots and braces are bundled by type for shipping; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
On a narrow screen the table scrolls sideways; every row stays readable in full.
03 · Features
Why this slot-and-panel colour-steel hoarding is specified
- Use: building sites, road and utility works and temporary compounds — a light hoarding that moves with the job.
- Post: 80×80×0.8 mm powder-coated square tube.
- Slot: U-section, 0.6/0.25 mm — the panel drops into the post slot.
- Panel: 0.3 mm grass-green colour-steel sheet, corrugated for stiffness across the span.
- Warning board: 0.4 mm black-and-yellow PVC along the base of the face.
- Brace: 40 square tube or L40 — both published options, chosen with the wind exposure.
- Fixings: base fixing and foundation detail are confirmed per specification against the ground condition.
- Run height and post spacing are confirmed on the order drawing; other colours or a printed face are agreed per order.
04 · Made to your drawing
Made to the project specification
Send us the drawing or the standard you follow and we confirm in writing what we can supply against it. For a colour-steel hoarding, that means the run height, the site length, the ground fixing, the wind exposure so the brace can be chosen, the post colour from the powder coating and the panel colour or printed face.
What settles this specification
The height and site length, the ground fixing, the wind exposure that decides between the 40 square tube and the L40 brace, and the face — grass green as published, another colour or a printed panel.
05 · Packing, price and delivery
How colour-steel hoarding is packed, priced and delivered
Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP. MOQ, loading plan and lead time are confirmed per specification — send the drawing, quantity and destination port and we reply within one business day.
| Packing | Panels, posts, slots and braces are bundled by type for shipping; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. |
|---|---|
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating or the print on the shop drawing. |
Long sections are bundled by type, so one bundle is one kind of part when the container is unpacked on site.
06 · Questions buyers ask
Colour-Steel Hoarding — frequent questions
Every answer below repeats a figure or a term already published on this page; nothing is added to the specification here.
How is the colour-steel hoarding put up and fixed down?
The post carries a U-section slot at 0.6/0.25 mm and the 0.3 mm corrugated panel drops into it; behind the face a 40 square tube or an L40 brace props the run. The base fixing and foundation detail are confirmed per specification against the ground condition before the order drawing is issued.
Can the run be made to my drawing?
Yes. The listed sections are quoted unchanged, and the open items — run height, post spacing and brace positions — are made to the project specification. Send the drawing or the standard you follow and we confirm in writing what we can supply against it.
Is there a catalogue model number or a published price?
No catalogue model number is issued until the requirement is agreed. Price is quoted per order — FOB Wuhan / Shanghai, CIF or DDP — and MOQ, loading plan and lead time are confirmed per specification; send the drawing, quantity and destination port and we reply within one business day.
How is the order packed, and what documents come with it?
Panels, posts, slots and braces are bundled by type for shipping, with banding, pallets and the exact bundle layout confirmed per specification together with the loading plan. Documentation is the proforma invoice, commercial invoice, packing list and certificate of origin as required; buyers who need CE / EN / ASTM documentation tell us the standard and it is confirmed in writing what can be supplied.
Which brace do I need, and can the run be reused on the next site?
The 40 square tube and the L40 are both published options, and the choice follows the exposure and the ground — a sheltered compound and an exposed roadside are not braced the same way. Because the panels and posts are standard sections, a run can be extended on the next phase or moved to the next site by keeping the posts and re-ordering only what was damaged, and the colour-steel panel and post face are the parts that stay visible while it does so.
