Hoarding & site fencing
Perforated Hoarding
A perforated galvanised panel face at 1200 × 2000 mm and 0.5–0.8 mm sheet thickness, perforated at Φ10 mm, carried on steel tube supports with a 0.7 mm wall and finished by electrostatic spray coating in multiple colours.
- Product category
- Hoarding & site fencing — perforated galvanised panel hoarding on steel tube supports
- Brand
- HONGYING GUARDRAIL
- Manufacturer
- Hubei Hongying Guardrail Co., Ltd. — Jiangxia District, Wuhan, Hubei, China
- Project service
- Made to the project specification: drawing, standard, quantity and destination port
How to select
Settle the run length, the height the run must reach, the ground fixing and the colour first, then where in the published 0.5–0.8 mm sheet range the panel should sit and which parts of the boundary take the perforated face. Those answers confirm the panel layout, the support spacing, the coating and the packing.
The point of this hoarding is the holes. A 1200×2000 mm galvanised sheet perforated at Φ10 mm and carried on steel tube supports lets air and light pass through the face instead of walling the site in, which is what gets it specified on an exposed boundary or on a narrow street where a closed panel would trap wind or shut out the daylight.
Photographs below show the product family; the specification on this page is the manufacturer's published figure and is quoted unchanged.
01 · Product overview
What the perforated hoarding is made of
The published figures are a 1200×2000 mm galvanised panel at 0.5–0.8 mm sheet thickness, perforated at Φ10 mm, on steel tube supports with a 0.7 mm wall and finished by electrostatic spray coating in multiple colours.
The point of this hoarding is the holes. A 1200×2000 mm galvanised sheet is perforated at Φ10 mm and carried on steel tube supports, so air passes through the face instead of loading it and daylight reaches the works behind it. That makes it the sensible answer where a powder-coated colour-steel panel would trap wind on an exposed boundary or turn a narrow street into a dark one.
The published figures fix the module and the handling. Each panel is 1200×2000 mm — a two-metre-high unit a small crew can carry and set — the sheet thickness range is 0.5–0.8 mm, and the support is steel tube with a 0.7 mm wall. The sheet thickness and the support wall together decide how much the face deflects under wind load, so where in the published range the sheet sits is a real decision rather than a detail.
The finish is electrostatic spray coating in multiple colours, chosen on the order. It is worth being clear about the trade the perforated face makes: the site behind it is partly visible from the street, which is a decision rather than a side effect. It suits boundaries where ventilation, daylight or a lighter look is wanted, and it is often run alongside a post-and-panel municipal hoarding, with the perforated panels reserved for the faces that need air or light.
Tell us the total run length, the height, the ground fixing, the colour and which parts of the boundary are perforated, and the panel layout, support spacing, coating and packing are confirmed as one specification. Run height and support spacing are not published as fixed figures — they follow the site.
- Panel1200×2000 mm galvanised sheet
- Sheet thickness0.5–0.8 mm
- PerforationΦ10 mm
- SupportSteel tube, 0.7 mm wall
- FinishElectrostatic spray coating, multiple colours
- Run height and support spacingConfirmed on the order drawing
- UseSite boundaries where wind or daylight has to pass the face
- EffectAir and light pass through instead of walling the site in

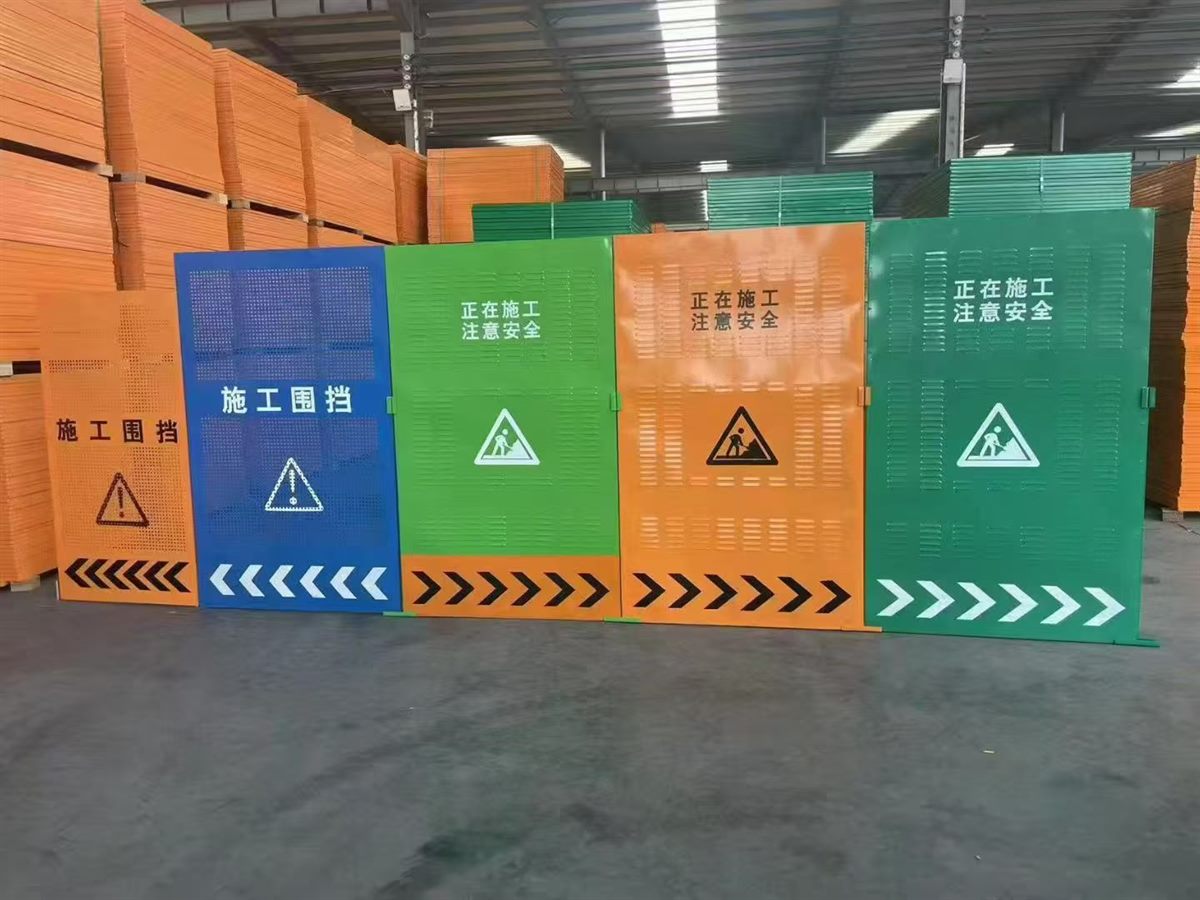

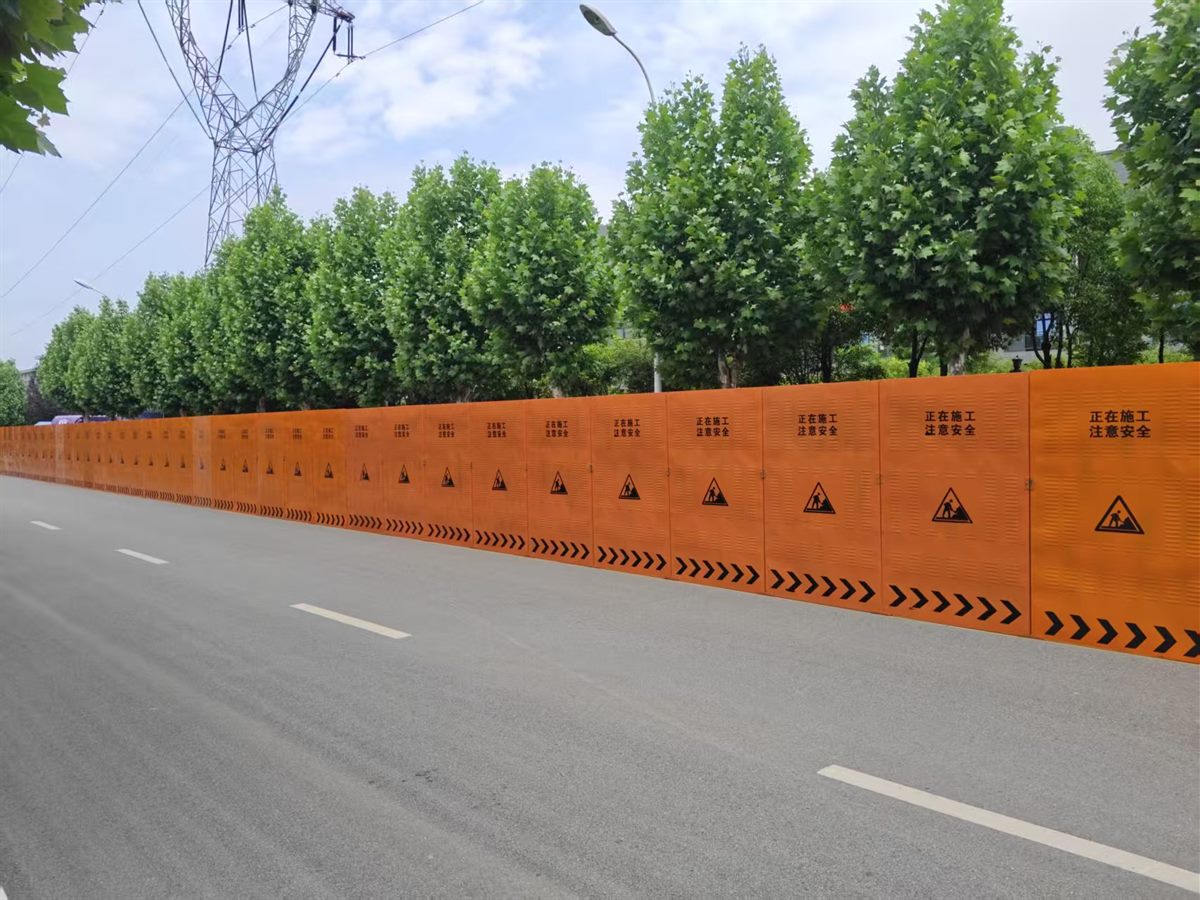

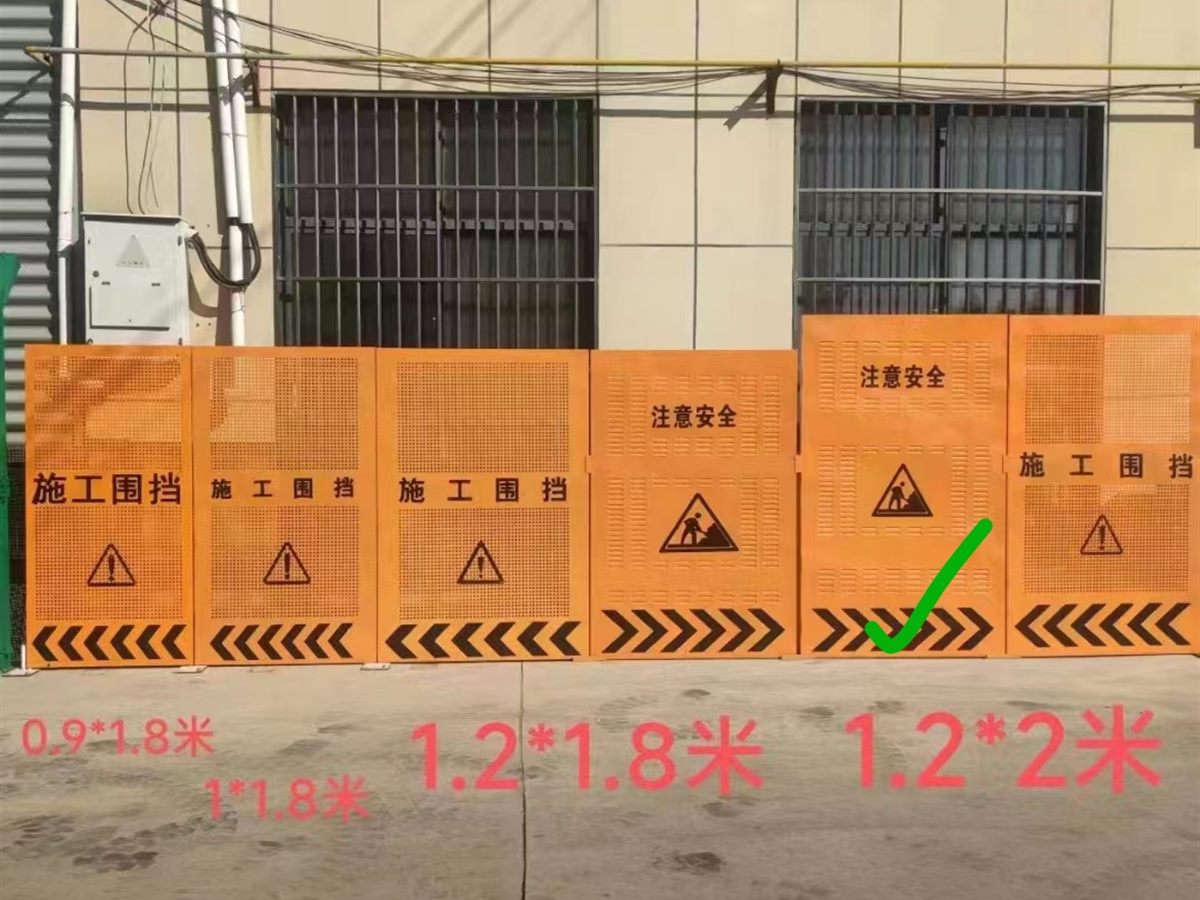

Pictured: a perforated hoarding run on steel tube supports at a site boundary, the 1200 × 2000 mm perforated galvanised panel on its support, and an electrostatic spray coated panel in colour.
02 · Technical specification
Perforated Hoarding — specification
The figures below are the specification published for this product and are quoted unchanged: they are the numbers a quotation and a shop drawing are built on. Where a row says made to the project specification, send the drawing or the standard you follow and it is confirmed in writing.
| Product / model reference | Perforated hoarding — perforated galvanised panel hoarding on steel tube supports. Quoted against your requirement; no catalogue model number is issued until the requirement is agreed. |
|---|---|
| Panel (板材) | 1200×2000 mm galvanised sheet. |
| Sheet thickness (厚度) | 0.5–0.8 mm. |
| Perforation (孔径) | Φ10 mm. |
| Support (钢管支撑) | Steel tube, 0.7 mm wall. |
| Finish (表面) | Electrostatic spray coating, multiple colours. The colour is chosen on the order. |
| Run height and support spacing | Not published by the manufacturer as fixed figures. The panel is published at 1200×2000 mm; tell us the height the run must reach and the ground condition, and support spacing and the panel layout are confirmed on the order drawing. |
| Packing, price and delivery | |
| Packing | Perforated panels are stacked and separated, and supports and fittings are bundled by type for shipping; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
On a narrow screen the table scrolls sideways; every row stays readable in full.
03 · Features
Why this perforated hoarding is specified
- Use: site boundaries where wind or daylight has to pass the face, and runs where a lighter, partly see-through hoarding is wanted.
- Panel: 1200×2000 mm galvanised sheet — a two-metre module a small crew can handle.
- Sheet thickness: 0.5–0.8 mm, as published; the figure sets how stiff the face is against wind.
- Perforation: Φ10 mm, letting air and light through the face.
- Support: steel tube, 0.7 mm wall.
- Finish: electrostatic spray coating, multiple colours — the colour is chosen on the order.
- Fixing: base fixing and foundation detail are confirmed per specification against the ground condition.
- Run height and support spacing are confirmed on the order drawing against the exposure and the site.
04 · Made to your drawing
Made to the project specification
Send us the drawing or the standard you follow and we confirm in writing what we can supply against it. For a perforated hoarding, that means the run height, the total length, the ground fixing, the colour, where in the 0.5–0.8 mm sheet range the panel should sit and which parts of the boundary are perforated.
What settles this specification
The run height and length, the ground fixing, the colour, where the sheet sits in the 0.5–0.8 mm range, and which parts of the boundary need the perforated face for air or daylight.
05 · Packing, price and delivery
How perforated hoarding is packed, priced and delivered
Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP. MOQ, loading plan and lead time are confirmed per specification — send the drawing, quantity and destination port and we reply within one business day.
| Packing | Perforated panels are stacked and separated, and supports and fittings are bundled by type for shipping; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. |
|---|---|
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating or the print on the shop drawing. |
Long sections are bundled by type, so one bundle is one kind of part when the container is unpacked on site.
06 · Questions buyers ask
Perforated Hoarding — frequent questions
Every answer below repeats a figure or a term already published on this page; nothing is added to the specification here.
How is the perforated hoarding fixed down?
The base fixing is not published as a fixed figure: the base fixing and foundation detail are confirmed per specification against the ground condition, and support spacing is confirmed on the order drawing. Tell us the height the run must reach and the ground condition, and both are settled in writing.
Can the panel and the run be made to my drawing?
Yes. The published figures are quoted unchanged — a 1200×2000 mm galvanised sheet, 0.5–0.8 mm sheet thickness, Φ10 mm perforation and steel tube supports with a 0.7 mm wall — and the open items, run height and support spacing, are confirmed on the order drawing against the exposure and the site.
Is there a catalogue model number or a published price?
No catalogue model number is issued until the requirement is agreed. Price is quoted per order — FOB Wuhan / Shanghai, CIF or DDP — and MOQ, loading plan and lead time are confirmed per specification; send the drawing, quantity and destination port and we reply within one business day.
How are the perforated panels packed for shipping?
Perforated panels are stacked and separated, and supports and fittings are bundled by type for shipping; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan.
What documents come with the order?
Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation tell us the standard, and it is confirmed in writing what can be supplied.
Related products
Usually quoted with perforated hoarding
Municipal Hoarding
A post-and-panel works hoarding built on deep galvanised posts with a concealed inner post, a two-band panel face — 480 mm white over 400 mm grey — a 50 × 50 × 0.9 mm brace and a flange-plate base with expansion bolts.
View product

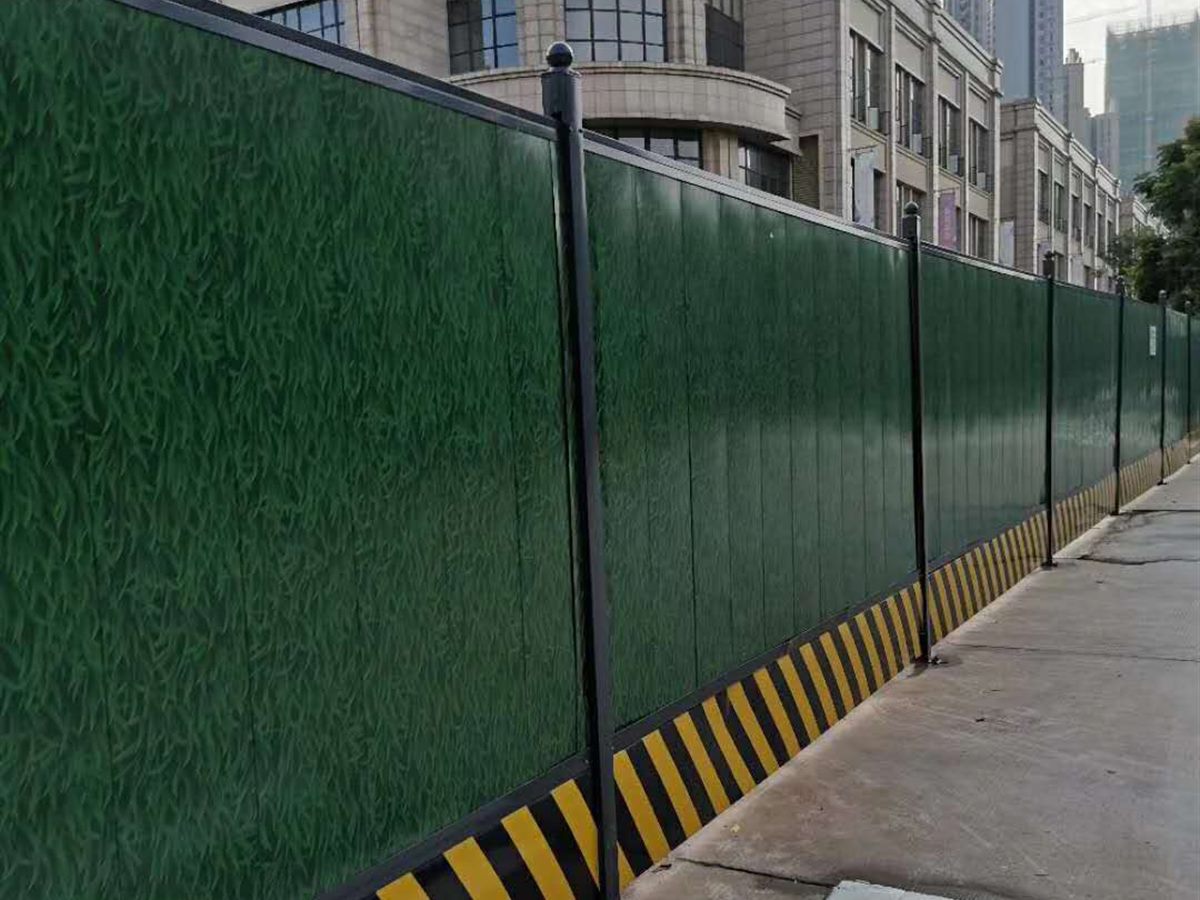

Colour-Steel Hoarding
A powder-coated square-tube post carrying a U-section slot, with a 0.3 mm grass-green corrugated colour-steel panel dropped into it and a 0.4 mm black-and-yellow PVC warning board along the base.
View product

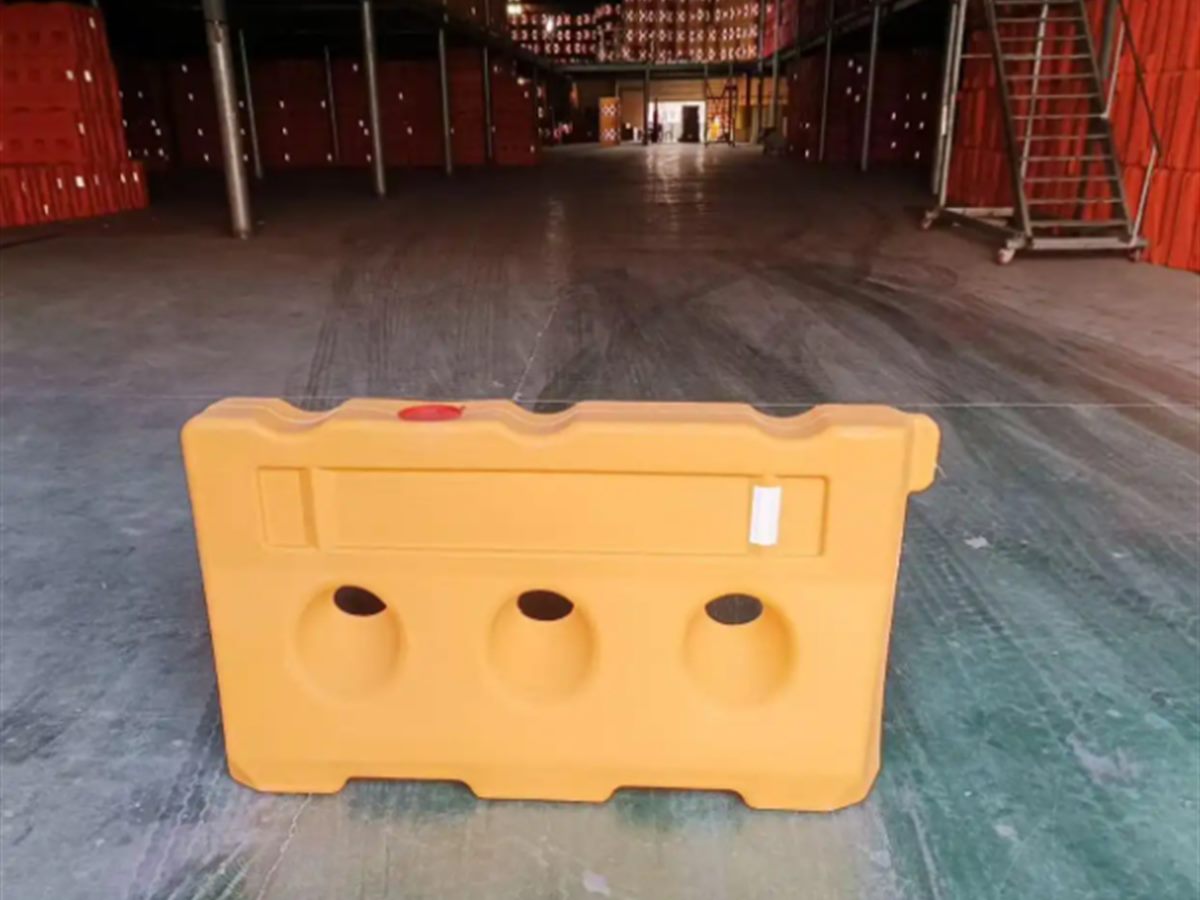

Water-Filled Barrier
