Hoarding & site fencing
PVC Hoarding
A visible face in PVC: a 120 × 120 mm PVC post shell over an 80 × 80 × 0.8 mm galvanised tube core, a 20 mm PVC panel in the colour you specify, a galvanised slot and a 40 square-tube brace behind the run.
- Product category
- Hoarding and site fencing — works hoarding with a PVC post shell over a galvanised tube core and a 20 mm PVC panel face
- Brand
- HONGYING GUARDRAIL
- Manufacturer
- Hubei Hongying Guardrail Co., Ltd. — Jiangxia District, Wuhan, Hubei, China
- Project service
- Made to the project specification: drawing, standard, quantity and destination port
How to select
Fix the run height, the panel band height and the colour first, then the post spacing and the ground fixing. Those answers settle the shell and core, the galvanised slot and brace, and the packing.
This hoarding splits the two jobs a hoarding does. The load is carried by a galvanised tube inside, and the face is presented by PVC — a shell around the post, and a 20 mm panel in the slot. Nothing raw is left visible on the outside, and the face takes colour cleanly, which is why it is chosen for frontages, entrances and compounds where the boundary is part of how the site looks rather than only a barrier.
Photographs below show the product family; the specification on this page is the manufacturer's published figure and is quoted unchanged.
01 · Product overview
What the PVC hoarding is made of
The published sections are a 120×120 mm PVC post shell over an 80×80×0.8 mm galvanised tube core, a 20 mm PVC panel in a custom colour, a galvanised slot to hold the panel, and a 40 square-tube brace behind the run.
This hoarding splits the two jobs a hoarding does. The load is carried by a galvanised tube inside, and the face is presented by PVC — a shell around the post, and a 20 mm panel in the slot. Nothing raw is left visible on the outside, and the face takes colour cleanly, which is why it is chosen for frontages, entrances and compounds where the boundary is part of how the site looks rather than only a barrier.
The published sections are a 120×120 mm PVC post shell over an 80×80×0.8 mm galvanised tube, a 20 mm PVC panel in a custom colour, a galvanised slot to hold the panel, and a 40 square-tube brace behind the run. The galvanised core is what resists the wind; the PVC shell and panel are what the public sees and what keeps its appearance without repainting.
A solid 20 mm PVC section gives a smoother, more uniform face than a thin corrugated sheet, and it can be washed down when the site is presented. Where the face is instead coated metal rather than PVC, a powder-coated colour-steel hoarding is the usual alternative, and where the boundary has to carry a printed picture rather than a flat colour, blue-sky printed hoarding is the one that does it. The same property makes the panel the part to protect in transit and on site, and the part we ask buyers to specify carefully: colour, panel band height and run height are the three figures that decide what gets made.
Run height and post spacing follow the site and the exposure, confirmed on the order drawing. Where a site is dusty, in strong sun, or carrying colour-critical branding, tell us the conditions as well as the colour, because the panel is the part of this hoarding that weathers first. Send the run length, the height, the ground fixing and the colour and the post spacing, panel band, brace and packing are confirmed together.
- Post shell120×120 mm PVC
- Post core80×80×0.8 mm galvanised tube inside the shell
- Panel20 mm PVC panel, custom colour
- Slot and braceGalvanised slot, with a 40 square-tube brace
- AppearanceNo raw steel outside; colour does not need repainting
- Run height and post spacingConfirmed on the order drawing
- ColourCustom — confirmed on the order
- UseWorks frontages, entrances, compounds, colour-critical sites

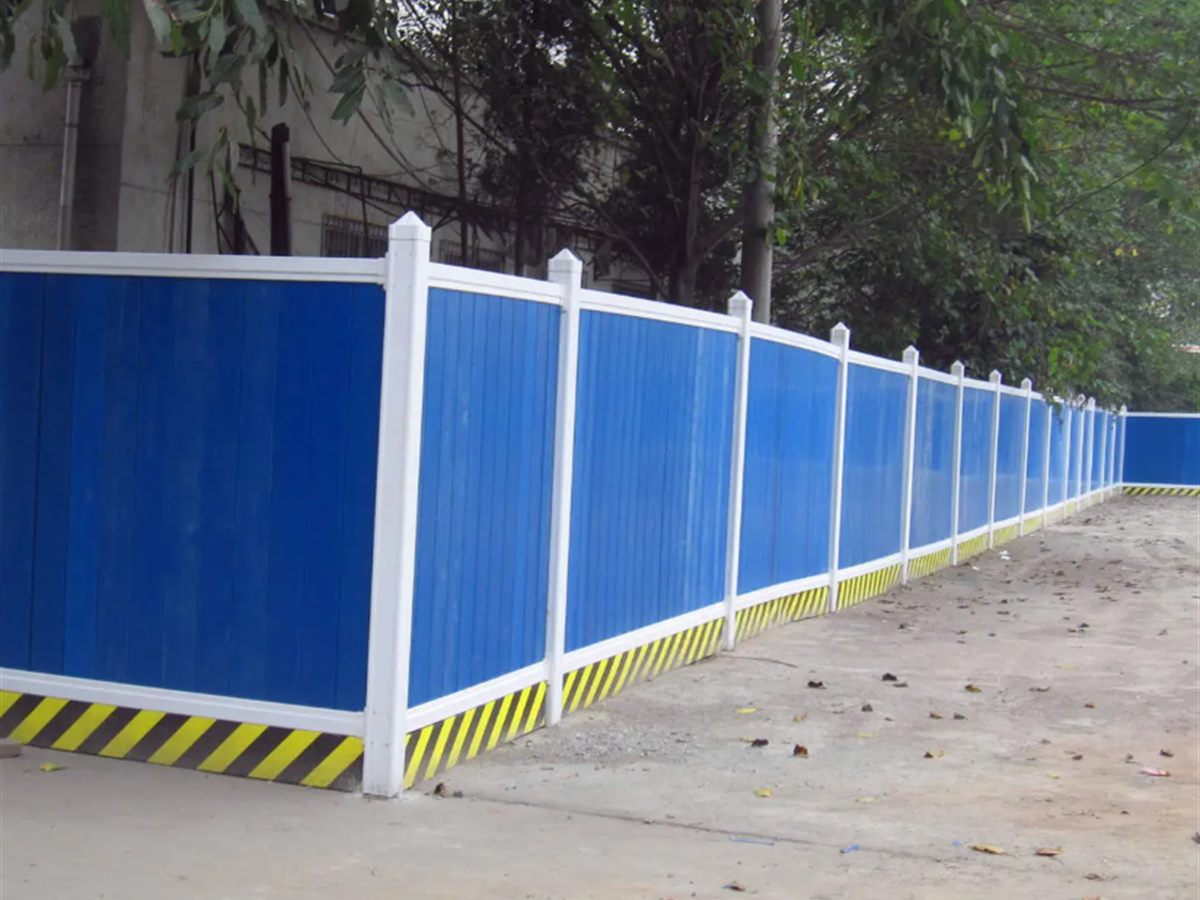

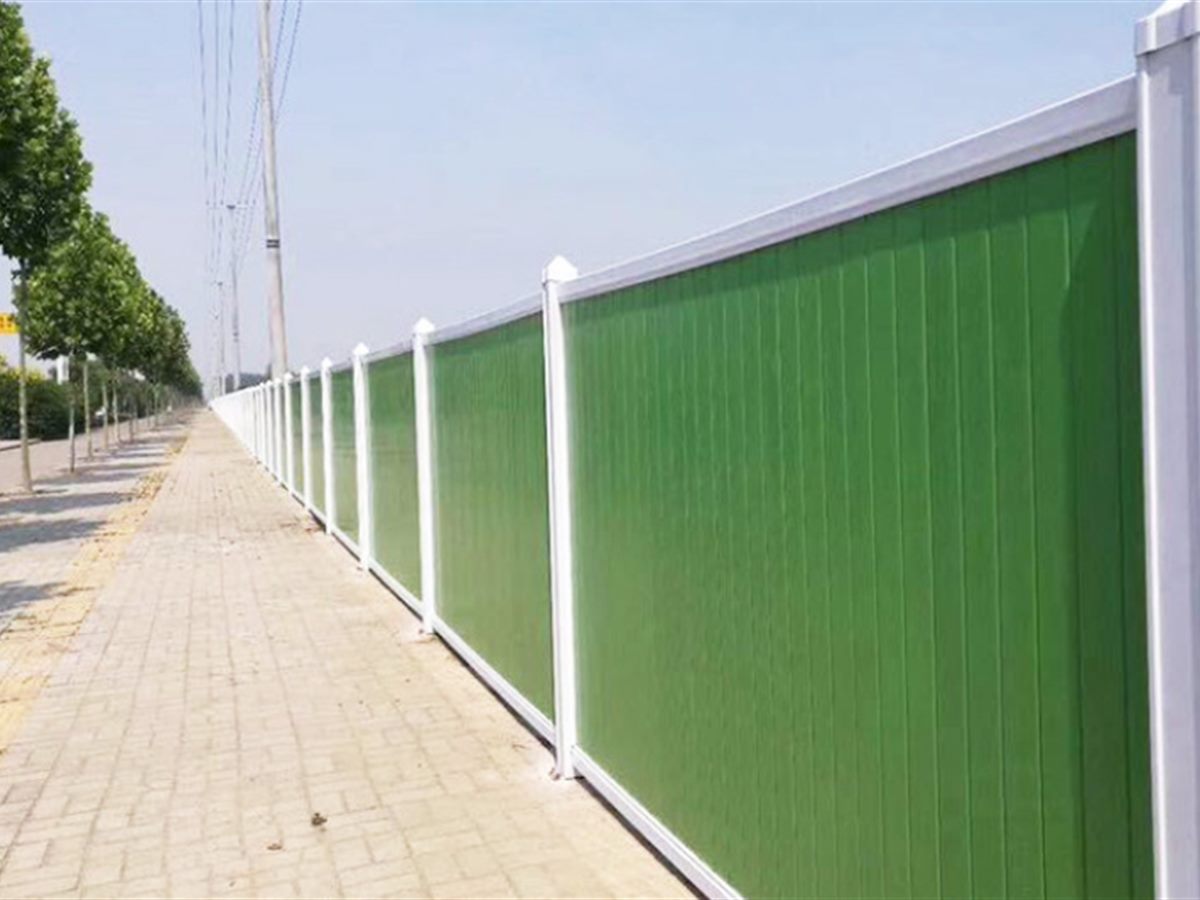

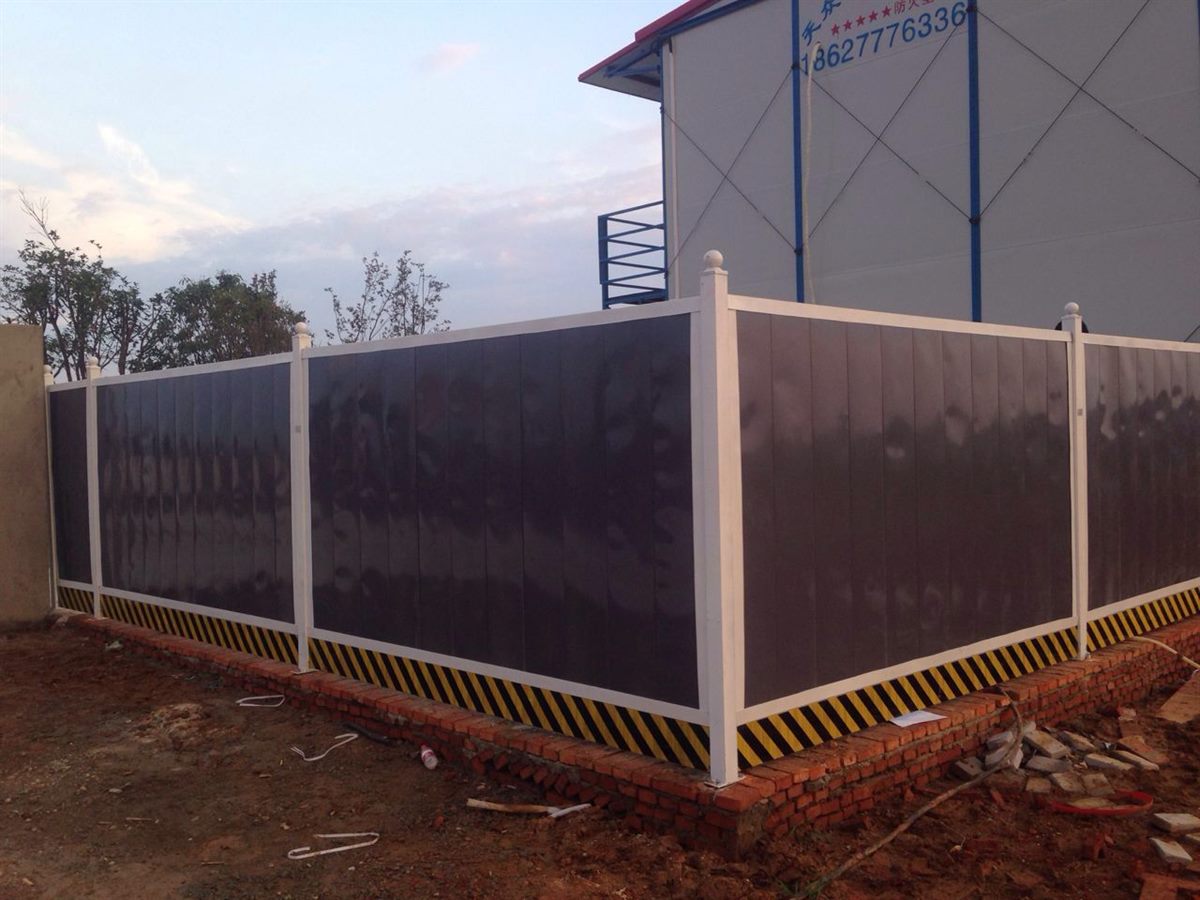

Pictured: the coloured PVC panel face with the PVC post shells along a works area, the shell sitting over its galvanised tube core, and the panel held in the galvanised slot with the square-tube brace behind it.
02 · Technical specification
PVC Hoarding — specification
The figures below are the specification published for this product and are quoted unchanged: they are the numbers a quotation and a shop drawing are built on. Where a row says made to the project specification, send the drawing or the standard you follow and it is confirmed in writing.
| Product / model reference | PVC hoarding — works hoarding with a PVC post shell over a galvanised tube core and a 20 mm PVC panel face. Quoted against your requirement; no catalogue model number is issued until the requirement is agreed. |
|---|---|
| Post shell (立柱外壳) | 120×120 mm PVC. |
| Post core (内衬) | 80×80×0.8 mm galvanised tube, inside the PVC shell. |
| Panel (面板) | 20 mm PVC panel, custom colour. |
| Slot and brace (卡槽 / 斜撑) | Galvanised slot, with a 40 square-tube brace behind the run. |
| Run height and post spacing | Not published by the manufacturer as fixed figures. Tell us the height you need and the ground condition, and post spacing and brace positions are confirmed on the order drawing. |
| Colours | Panel colour is published as a custom colour — tell us the colour you need and it is confirmed on the order. Other colours are not listed as stock items by the manufacturer. |
| Packing, price and delivery | |
| Packing | PVC panels, post shells, galvanised cores, slots and braces are bundled by type for shipping; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
On a narrow screen the table scrolls sideways; every row stays readable in full.
03 · Features
Why this PVC-faced hoarding is specified
- Use: works frontages, entrances, compounds and sites where the hoarding face has to look clean and carry colour.
- Post shell: 120×120 mm PVC.
- Post core: 80×80×0.8 mm galvanised tube inside the PVC shell, carrying the load.
- Panel: 20 mm PVC panel in a custom colour — the colour is chosen for the project rather than taken from stock.
- Slot: galvanised slot, plus a 40 square-tube brace behind the run.
- Appearance: no raw steel on the outside face; the PVC shell and panel keep their colour without repainting.
- Fixing: base fixing and foundation detail are confirmed per specification against the ground condition.
- Run height, post spacing and panel band height are confirmed on the order drawing.
04 · Made to your drawing
Made to the project specification
Send us the drawing or the standard you follow and we confirm in writing what we can supply against it. For a PVC hoarding, that means the run height, the panel band height, the post spacing, the ground fixing, the wind exposure and the panel colour, with the conditions the face will stand in on site.
What settles this specification
The run height and panel band height, the post spacing and the brace behind the run, the ground fixing, and the panel colour, which is made to order rather than taken from a stock list.
05 · Packing, price and delivery
How PVC hoarding is packed, priced and delivered
Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP. MOQ, loading plan and lead time are confirmed per specification — send the drawing, quantity and destination port and we reply within one business day.
| Packing | PVC panels, post shells, galvanised cores, slots and braces are bundled by type for shipping; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. |
|---|---|
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating or the print on the shop drawing. |
Long sections are bundled by type, so one bundle is one kind of part when the container is unpacked on site.
06 · Questions buyers ask
PVC Hoarding — frequent questions
Every answer below repeats a figure or a term already published on this page; nothing is added to the specification here.
How is the PVC hoarding fixed down?
The base fixing and foundation detail are confirmed per specification against the ground condition, and the run height and post spacing that govern the fixing are confirmed on the order drawing. Send the height you need and the ground condition and it is confirmed in writing.
What exactly is made to my drawing?
The run height, the panel band height, the post spacing, the ground fixing, the wind exposure and the panel colour are made to the project specification. The listed sections — a 120×120 mm PVC post shell, an 80×80×0.8 mm galvanised tube core, a 20 mm PVC panel and a 40 square-tube brace behind the run — are quoted unchanged.
Is there a catalogue model number or a published price?
No catalogue model number is issued until the requirement is agreed. Price is quoted per order — FOB Wuhan / Shanghai, CIF or DDP — and MOQ, loading plan and lead time are confirmed per specification; send the drawing, quantity and destination port and we reply within one business day.
What colour can the panel be, and what documents come with the order?
The panel colour is published as a custom colour: tell us the colour you need and it is confirmed on the order, and other colours are not listed as stock items by the manufacturer. Documents are proforma invoice, commercial invoice, packing list and certificate of origin as required; buyers who need CE / EN / ASTM documentation tell us the standard, and it is confirmed in writing what can be supplied.
How is it packed, and how is the panel protected?
PVC panels, post shells, galvanised cores, slots and braces are bundled by type for shipping, so one bundle is one kind of part when the container is unpacked. Banding, pallets and the exact bundle layout are confirmed per specification with the loading plan, and the 20 mm panel is the part we ask buyers to protect in transit and on site.
Related products
Usually quoted with PVC hoarding
Colour-Steel Hoarding
A powder-coated square-tube post carrying a U-section slot, with a 0.3 mm grass-green corrugated colour-steel panel dropped into it and a 0.4 mm black-and-yellow PVC warning board along the base.
View product

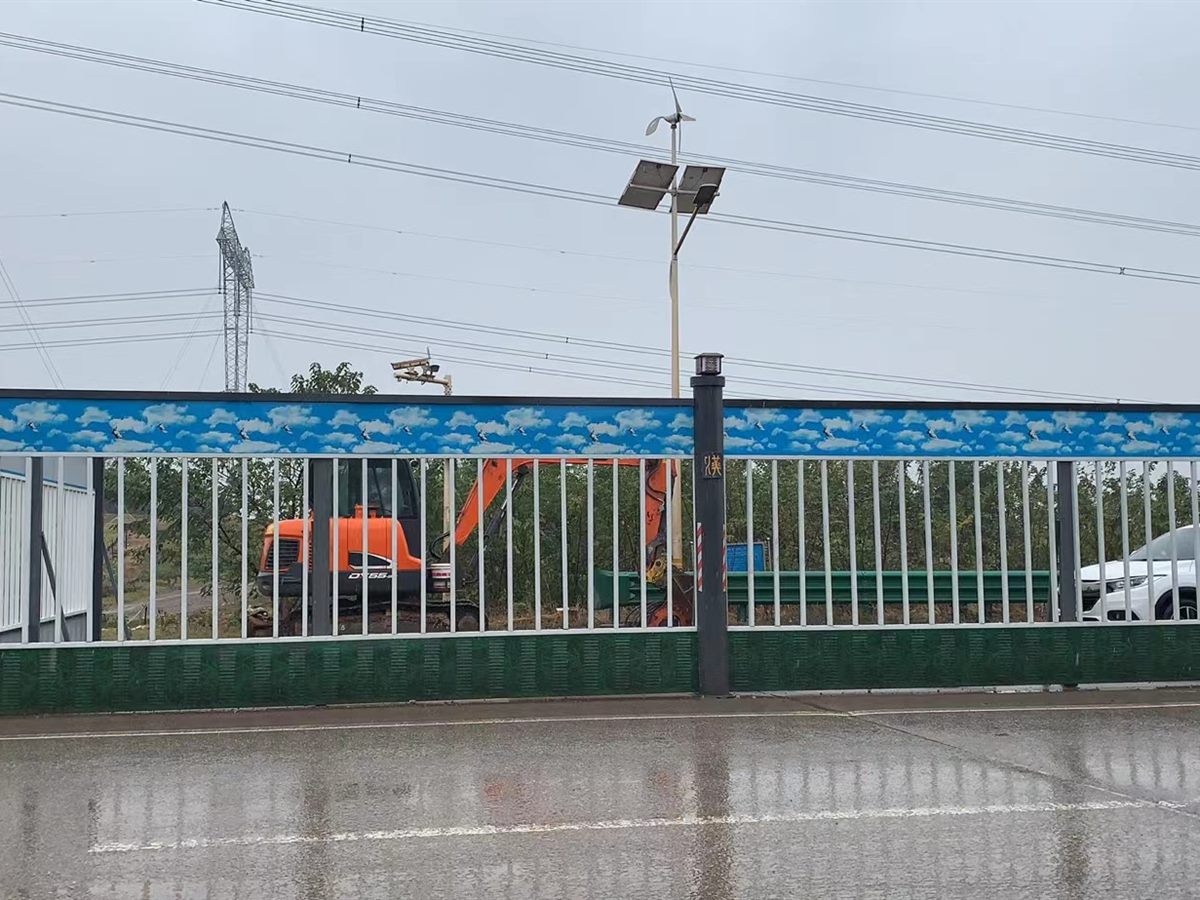

Blue-Sky Printed Hoarding
