Hoarding & site fencing
Blue-Sky Printed Hoarding
A decorative hoarding in 2.5 × 6 m panels — a 480 mm printed colour-steel upper band over a 480 mm green louvred perforated lower band, on half-round shaped posts with an 80 × 80 × 0.9 mm concealed post and a 60 mm U-section cap.
- Product category
- Hoarding & site fencing — decorative hoarding with a printed upper band and a louvred perforated lower band
- Brand
- HONGYING GUARDRAIL
- Manufacturer
- Hubei Hongying Guardrail Co., Ltd. — Jiangxia District, Wuhan, Hubei, China
- Project service
- Made to the project specification: drawing, standard, quantity and destination port
How to select
Fix the total run length, the height and the ground fixing first, then the printed artwork and the split between the two 480 mm bands. Those answers settle the post spacing, the panel layout, the 60 mm U-section cap detail and the packing. The colour is RAL to sample, so send the reference or a physical sample with the order.
This is the hoarding we build for a works boundary that has to look presentable along a public street. The published panel is 2.5 × 6 m and the face is divided into two 480 mm bands — a printed colour-steel upper band carrying the blue-sky graphic above a green louvred perforated lower band — carried on half-round shaped posts with an 80 × 80 × 0.9 mm concealed post at the panel joint and a 60 mm U-section cap closing the top edge. Because the units are large, a run of them reads as one continuous printed band rather than a line of small panels.
Photographs below show the product family; the specification on this page is the manufacturer's published figure and is quoted unchanged.
01 · Product overview
What the blue-sky printed hoarding is made of
The published figures are a 2.5×6 m panel in two 480 mm bands — a printed colour-steel upper band carrying the blue-sky graphic over a green louvred perforated lower band — with half-round shaped posts, an 80×80×0.9 mm concealed post behind the face at the panel joint and a 60 mm U-section cap.
This hoarding is bought for how it looks along a street. The published panel is 2.5×6 m, and the face is divided into two 480 mm bands: a printed colour-steel band carrying the blue-sky graphic above a green louvred perforated band. A 60 mm U-section closes the top of the run, the posts are half-round shaped sections, and an 80×80×0.9 mm concealed post sits behind the face at the panel joint.
The 6 m panel is the figure that shapes everything else. A two-and-a-half-metre-high unit of that length is carried on the shaped post and the concealed post rather than on a dense line of small posts, and that spacing is a large part of why the run reads more calmly than a panel-and-post site fence. The concealed post keeps the printed face flush across the joint, and the U-section cap closes the top edge so the panel line looks like one continuous band.
The two bands do different work. The upper band carries the graphic; the lower band is perforated and louvred, so the bottom of the face ventilates while the top carries the image. Where the whole face has to be open rather than only the lower band, perforated hoarding is the usual alternative. The published lower band is green, and where a project needs different artwork or a different split between the bands, that is agreed on the order because the printed panel and the band heights are cut together. Where a plain coated face is wanted in place of the printed one, colour-steel hoarding covers that.
Post spacing and total length follow the site and the exposure — a 2.5 m high, 6 m long panel presents a large face to the wind — and both are confirmed on the order drawing. Tell us the total run length, the height, the ground fixing, the artwork and the band split, and the post spacing, panel layout, cap detail and packing are confirmed as one specification.
- Panel2.5×6 m
- PostHalf-round shaped post
- Concealed post80×80×0.9 mm behind the panel face
- Upper panel480 mm printed colour-steel with the blue-sky graphic
- Lower panel480 mm green louvred perforated panel
- Cap60 mm U-section
- Printed artworkAgreed per order; the panel is cut to the artwork
- UseLong public-street frontages and city sites

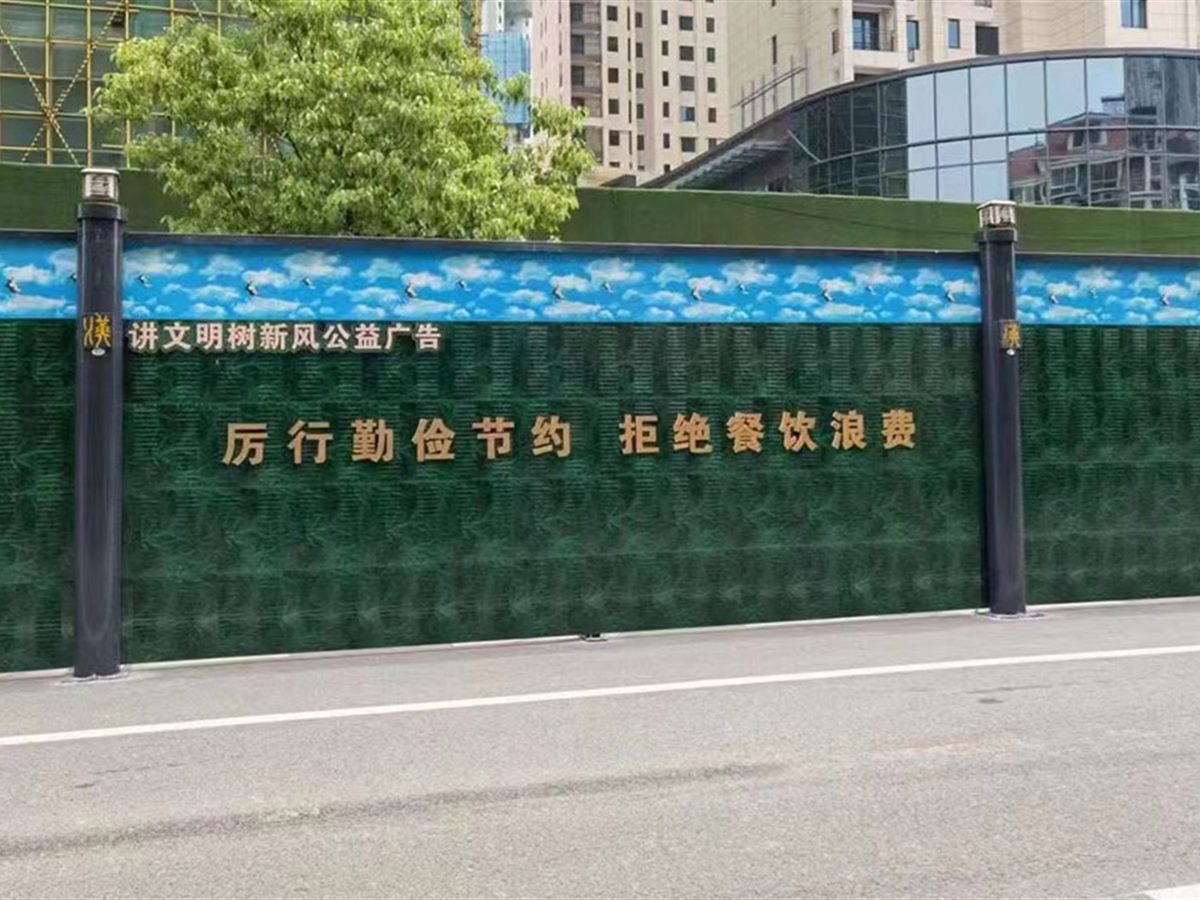

Pictured: the printed upper band seen from the front, the half-round shaped post with its 60 mm U-section cap, and the green louvred perforated lower panel that ventilates the bottom of the face.
02 · Technical specification
Blue-Sky Printed Hoarding — specification
The figures below are the specification published for this product and are quoted unchanged: they are the numbers a quotation and a shop drawing are built on. Where a row says made to the project specification, send the drawing or the standard you follow and it is confirmed in writing.
| Product / model reference | Blue-sky printed hoarding — decorative hoarding with a printed upper band and a louvred perforated lower band. Quoted against your requirement; no catalogue model number is issued until the requirement is agreed. |
|---|---|
| Panel (面板) | 2.5×6 m. |
| Post (立柱) | Half-round shaped post. |
| Concealed post (暗柱) | 80×80×0.9 mm, set behind the panel face at the panel joint. |
| Upper panel (上面板) | 480 mm printed colour-steel panel carrying the blue-sky graphic. |
| Lower panel (下面板) | 480 mm green louvred perforated panel. |
| Cap (压顶) | 60 mm U-section. |
| Post spacing and total length | Not published by the manufacturer as fixed figures. The panel is published at 2.5×6 m; tell us the total run length and the ground condition, and post spacing is confirmed on the order drawing. |
| Printed artwork | The blue-sky graphic and the split between the two bands are agreed per order; the printed panel is cut to the artwork. |
| Packing, price and delivery | |
| Packing | Printed panels are stacked and separated so the printed face is not marked, and posts, concealed posts, caps and fittings are bundled by type; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
On a narrow screen the table scrolls sideways; every row stays readable in full.
03 · Features
Why this printed hoarding is specified
- Use: long public-street frontages and city sites where the works boundary has to look presentable.
- Panel: 2.5×6 m, as published — fewer, larger units along the frontage.
- Post: half-round shaped post, with an 80×80×0.9 mm concealed post behind the face at the joint.
- Upper band: 480 mm printed colour-steel panel carrying the blue-sky graphic.
- Lower band: 480 mm green louvred perforated panel, so the bottom of the face ventilates.
- Cap: 60 mm U-section, closing the top edge so the panel line reads as one band.
- Artwork: the printed graphic and the band split are agreed per order; the panel is cut to the artwork.
- Post spacing and total length are confirmed on the order drawing against the run and the exposure.
04 · Made to your drawing
Made to the project specification
Send us the drawing or the standard you follow and we confirm in writing what we can supply against it. For a printed hoarding, that means the total run length, the height, the ground fixing, the printed artwork, the split between the two bands and the post spacing that the exposure allows.
What settles this specification
The run length, the height, the ground fixing, the printed artwork and the band split. The 2.5×6 m panel is a large face, so the post spacing follows the exposure as well as the layout.
05 · Packing, price and delivery
How blue-sky printed hoarding is packed, priced and delivered
Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP. MOQ, loading plan and lead time are confirmed per specification — send the drawing, quantity and destination port and we reply within one business day.
| Packing | Printed panels are stacked and separated so the printed face is not marked, and posts, concealed posts, caps and fittings are bundled by type; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. |
|---|---|
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating or the print on the shop drawing. |
Long sections are bundled by type, so one bundle is one kind of part when the container is unpacked on site.
06 · Questions buyers ask
Blue-Sky Printed Hoarding — frequent questions
Every answer below repeats a figure or a term already published on this page; nothing is added to the specification here.
How is a 2.5×6 m printed panel held up and fixed down?
The published parts are a half-round shaped post, an 80×80×0.9 mm concealed post set behind the panel face at the panel joint, and a 60 mm U-section cap closing the top edge. The ground fixing is one of the items confirmed against the project rather than a published fixed figure, so tell us the ground condition with the drawing.
What is made to my drawing and what is published?
The listed sections are quoted unchanged: the 2.5×6 m panel, the 480 mm printed colour-steel upper band, the 480 mm green louvred perforated lower band, the 80×80×0.9 mm concealed post and the 60 mm U-section cap. Total run length, height, ground fixing, printed artwork, band split and post spacing are made to the project specification; send the drawing or the standard you follow and we confirm in writing what we can supply against it.
Is there a catalogue model number or a published price?
No catalogue model number is issued until the requirement is agreed. Price is quoted per order — FOB Wuhan / Shanghai, CIF or DDP — and MOQ, loading plan and lead time are confirmed per specification; send the drawing, quantity and destination port and we reply within one business day.
How are the printed panels packed, and how is the colour agreed?
Printed panels are stacked and separated so the printed face is not marked, and posts, concealed posts, caps and fittings are bundled by type; banding, pallets and the exact bundle layout are confirmed per specification with the loading plan. Colour is RAL to sample — send the reference or a physical sample and we confirm the coating or the print on the shop drawing.
What documents come with the order?
Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation tell us the standard, and it is confirmed in writing what can be supplied.
