Wire mesh fencing
Framed Mesh Fence
A welded mesh panel welded into a square-, round-, rectangular-tube or angle frame — frame 20 × 30 / 20 × 40 mm at 0.8–1.5 mm wall, on ø48 mm round or 40 × 40 to 80 × 80 mm square posts.
- Product category
- Wire mesh fencing — welded mesh panel welded into a frame, with posts
- Brand
- HONGYING GUARDRAIL
- Manufacturer
- Hubei Hongying Guardrail Co., Ltd. — Jiangxia District, Wuhan, Hubei, China
- Project service
- Made to the project specification: drawing, standard, quantity and destination port
How to select
Fix the mesh aperture, the frame material and section, the post section and the panel size first, then the surface, the colour and the run with its corners and openings. Frame and post are chosen together, because the panel is fixed to the post along the frame. Those answers settle the shop drawing, the packing and the loading plan.
This is the mesh fence that keeps a flat face. Welding the mesh into a frame closes the edges of the sheet, so the panel holds its shape across the span instead of sagging between fixings, and the run reads as a built unit rather than a stretched sheet tied to posts. That is what gets specified where the fence is seen up close — schools, housing, industrial frontages, courts and boundary runs that change direction — and where the frame and the post have to meet properly for the line to look right.
Photographs below show the product family; the specification on this page is the manufacturer's published figure and is quoted unchanged.
01 · Product overview
What the framed mesh fence is made of
The published build is a welded mesh panel welded into a 20 × 30 mm or 20 × 40 mm rectangular tube frame at 0.8 / 1.0 / 1.2 / 1.5 mm wall, carried on ø48 mm round posts at 1.0 / 1.2 / 1.5 / 2.0 mm wall or on 40 × 40, 60 × 60, 40 × 60 and 80 × 80 mm square posts at 0.8–2.0 mm wall.
Welding the mesh into a frame turns a flexible sheet into a unit. The panel is welded from low-carbon steel wire to the aperture the customer specifies, and then that mesh is welded into a frame of square tube, round tube, rectangular tube or angle steel, so the edges are closed and the face stays flat across the span instead of sagging between fixings.
The published frame is 20 × 30 mm or 20 × 40 mm rectangular welded tube with a wall of 0.8, 1.0, 1.2 or 1.5 mm. Posts are ø48 mm round tube at 1.0, 1.2, 1.5 or 2.0 mm wall, or square tube in 40 × 40, 60 × 60, 40 × 60 or 80 × 80 mm with a wall from 0.8 to 2.0 mm. Frame and post are chosen together because the panel is fixed to the post along the frame, and the two sections have to meet properly for the line to look right.
Finish is electro-galvanised or hot-dip galvanised and then PVC dipped, or galvanised plus powder coating, in white, green, dark green, grass green, black, blue or yellow. Mesh aperture and panel size follow the drawing, so the panel is quoted to the run rather than to a catalogue size.
Framed mesh is usually chosen where the fence is seen up close and has to look deliberate: schools, housing, industrial frontages, courts and boundary runs that change direction. Where the panel has to be rigid as welded mesh rather than framed, double-wire mesh fence is the welded alternative, and where the line needs an angled head instead of a top rail, anti-climb Y-post fence carries the same mesh in a Y-shaped post. Send the aperture, the frame and post section, the colour and the run with its corners and openings, and the build is confirmed on the shop drawing.
- TypeWelded mesh welded into a frame, with posts
- Frame materialSquare, round or rectangular tube, or angle steel
- Frame section20 × 30 mm or 20 × 40 mm rectangular welded tube
- Frame wall0.8 / 1.0 / 1.2 / 1.5 mm
- Round postsø48 mm, wall 1.0 / 1.2 / 1.5 / 2.0 mm
- Square posts40 × 40, 60 × 60, 40 × 60, 80 × 80 mm, wall 0.8–2.0 mm
- SurfaceGalvanised then PVC dipped, or galvanised plus powder coating
- ColoursWhite, green, dark green, grass green, black, blue, yellow

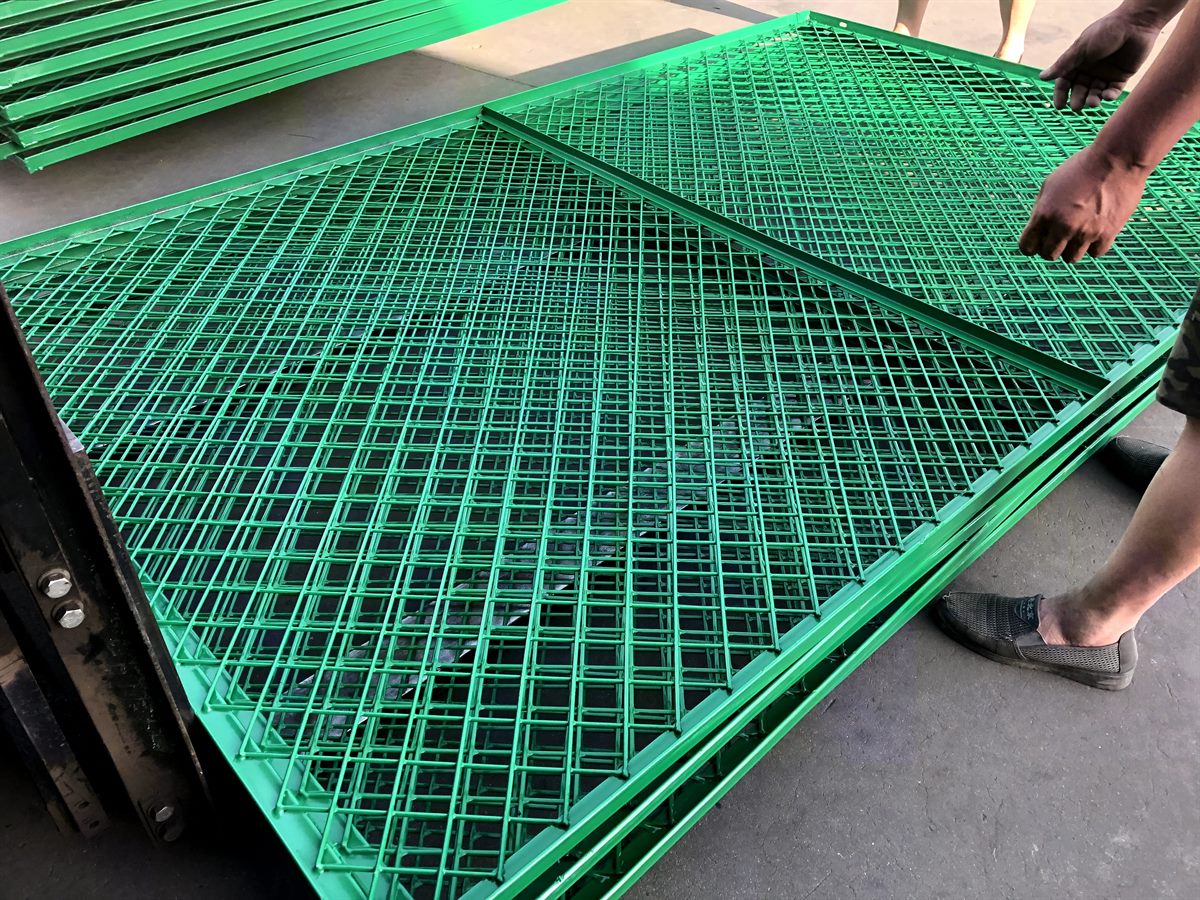

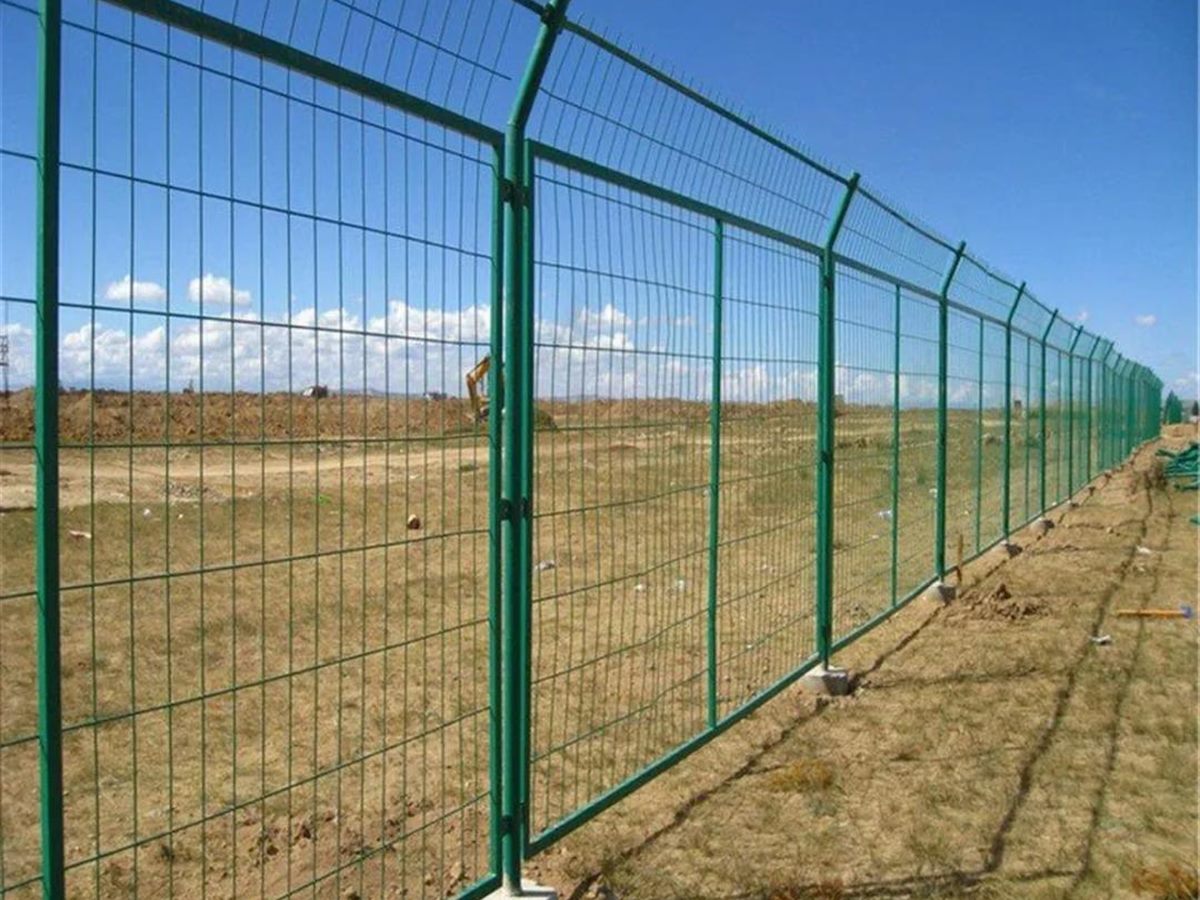

Pictured: the mesh welded into a rectangular tube frame, the panel fixed to a round post with the matching fittings, and the galvanised and PVC dipped finish on panels and posts.
02 · Technical specification
Framed Mesh Fence — specification
The figures below are the specification published for this product and are quoted unchanged: they are the numbers a quotation and a shop drawing are built on. Where a row says made to the project specification, send the drawing or the standard you follow and it is confirmed in writing.
| Product / model reference | Framed mesh fence — welded mesh panel welded into a frame, with posts. Quotation against your drawing or the standard you follow; no catalogue model number is issued until the drawing is agreed. |
|---|---|
| Type | Welded mesh panel welded into a frame of square tube, round tube, rectangular tube or angle steel. |
| Mesh | Welded from low-carbon steel wire to the customer's specified aperture. |
| Mesh aperture | Made to the project specification — send us the drawing or the standard you follow. |
| Frame section | 20 × 30 mm or 20 × 40 mm rectangular welded tube, wall 0.8 / 1.0 / 1.2 / 1.5 mm. |
| Round posts | ø48 mm round tube, wall 1.0 / 1.2 / 1.5 / 2.0 mm. |
| Square posts | 40 × 40 mm, 60 × 60 mm, 40 × 60 mm and 80 × 80 mm, wall 0.8–2.0 mm. |
| Panel size | Made to the project specification — send us the drawing or the standard you follow. |
| Surface treatment | Electro-galvanised or hot-dip galvanised and then PVC dipped, or galvanised plus powder coating. |
| Colours | White, green, dark green, grass green, black, blue, yellow. |
| Packing, price and delivery | |
| Packing | Panels, posts and fittings are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
On a narrow screen the table scrolls sideways; every row stays readable in full.
03 · Features
Why the framed mesh fence is specified
- Construction: mesh panel welded from low-carbon steel wire to the aperture the customer specifies, then welded into a frame.
- Frame material: square tube, round tube, rectangular tube or angle steel.
- Frame section: 20 × 30 mm or 20 × 40 mm rectangular welded tube, wall 0.8 / 1.0 / 1.2 / 1.5 mm.
- Round posts: ø48 mm tube, wall 1.0 / 1.2 / 1.5 / 2.0 mm.
- Square posts: 40 × 40, 60 × 60, 40 × 60 or 80 × 80 mm, wall 0.8–2.0 mm.
- Surface: electro-galvanised or hot-dip galvanised then PVC dipped, or galvanised plus powder coating.
- Colours: white, green, dark green, grass green, black, blue, yellow.
- Mesh aperture and panel size: made to the project specification — send us the drawing or the standard you follow.
04 · Made to your drawing
Made to the project specification
Send us the drawing or the standard you follow and we confirm in writing what we can supply against it. For framed mesh fence, that means the mesh aperture, the frame material and section, the post section, the panel size, the surface and the colour, with the run, its corners and its openings.
What settles this specification
The frame material and section, the post section, the mesh aperture and the panel size, the colour and the run. Frame and post are chosen together, because the panel is fixed to the post along the frame.
05 · Packing, price and delivery
How framed mesh fence is packed, priced and delivered
Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP. MOQ, loading plan and lead time are confirmed per specification — send the drawing, quantity and destination port and we reply within one business day.
| Packing | Panels, posts and fittings are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. |
|---|---|
| Price | Price: quoted per order — FOB Wuhan / Shanghai, CIF or DDP |
| MOQ | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Loading | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Lead time | Confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. |
| Documentation | Proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation: tell us the standard and we will confirm in writing what we can supply. |
| Colour | RAL to sample — send the reference or a physical sample and we confirm the coating or the print on the shop drawing. |
Panels, posts and fittings are bundled by type, so one bundle is one kind of part when the container is unpacked on site.
06 · Questions buyers ask
Framed Mesh Fence — frequent questions
Every answer below repeats a figure or a term already published on this page; nothing is added to the specification here.
How is the framed mesh fence fixed down?
The panel is fixed to the post along the frame, and frame and post are chosen together because the two sections have to meet properly for the line to look right. The published posts are ø48 mm round tube at 1.0 / 1.2 / 1.5 / 2.0 mm wall, or square tube in 40 × 40, 60 × 60, 40 × 60 or 80 × 80 mm at 0.8–2.0 mm wall; the run with its corners and openings is confirmed on the shop drawing.
What is made to my drawing?
The mesh aperture and the panel size are made to the project specification, and the frame material and section, the post section, the surface and the colour are chosen with them. Mesh aperture and panel size follow the drawing, so the panel is quoted to the run rather than to a catalogue size. Send the drawing or the standard you follow and we confirm in writing what we can supply against it.
Is there a catalogue model number or a published price?
No catalogue model number is issued until the drawing is agreed. Price is quoted per order — FOB Wuhan / Shanghai, CIF or DDP — and MOQ, loading plan and lead time are confirmed per specification; send the drawing, quantity and destination port and we reply within one business day.
What is the MOQ, the loading plan and the lead time?
All three are confirmed per specification — send the drawing, quantity and destination port and we reply with MOQ, loading plan and lead time within one business day. The figures are not published as fixed numbers, because the frame section, the post section and the panel size are made to the drawing.
How is the order packed and what documents come with it?
Panels, posts and fittings are bundled and palletised for container loading; the exact packing method is confirmed per specification with the loading plan. Documents are the proforma invoice, commercial invoice, packing list and certificate of origin as required. Buyers who need CE / EN / ASTM documentation tell us the standard, and it is confirmed in writing what can be supplied.
